Polaris 340 CLASSIC 2006 User Manual

13.21
ELECTRICAL
SPEED SENSOR

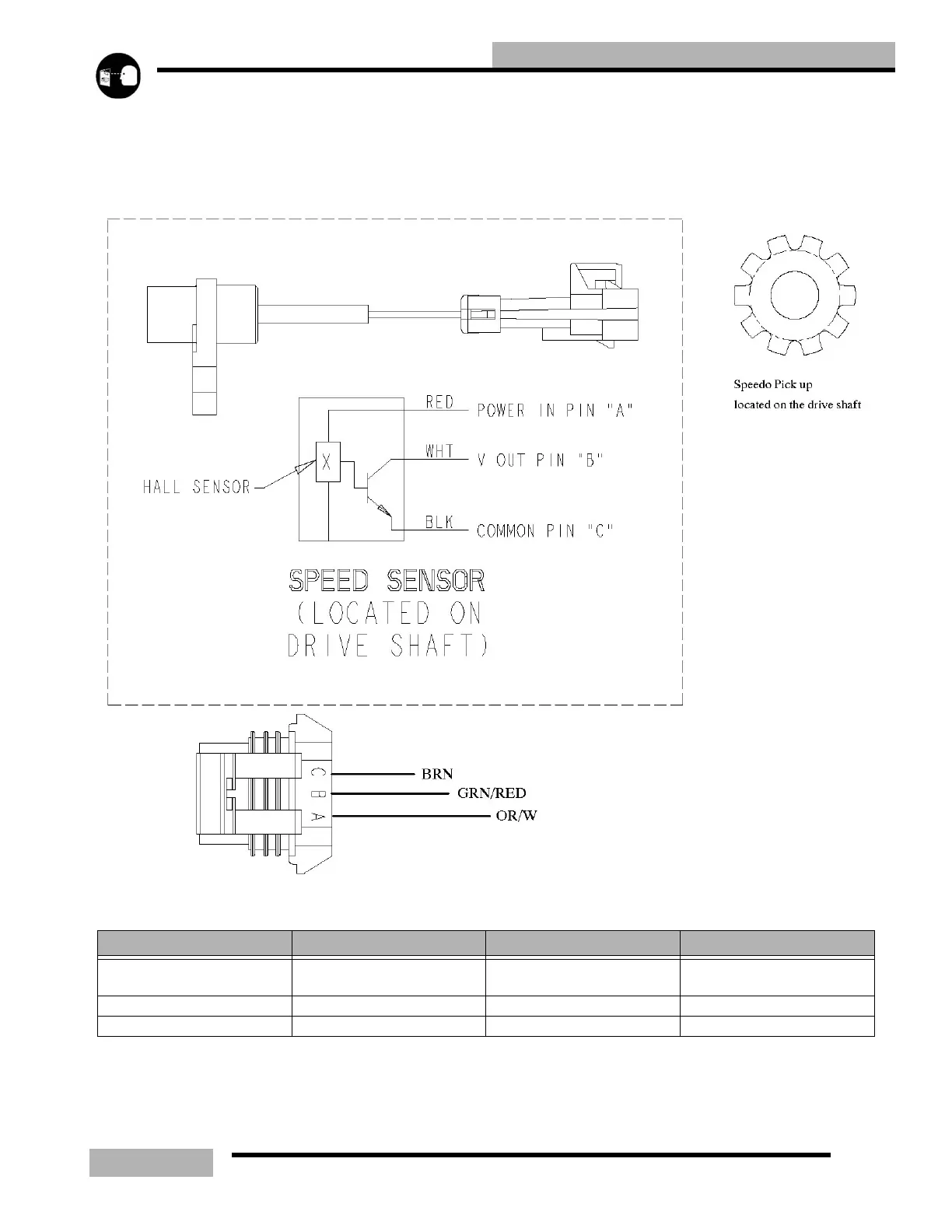

This is a hall effect sensor that measures the speed of the drive
shaft to give you the speed of the track.
Table 13-15: Speed Sensor Testing
PIN # COLOR ITEM VALUE
A Red Gauge
Power 5 volts (powered bu
gauge)
B White Speed Signal to Gauge Checking with Hall sensor
C Black Signal to Ground Continuity to ground
