Polaris 340 CLASSIC 2006

13.29
ELECTRICAL
GENERAL ELECTRICAL ITEMS

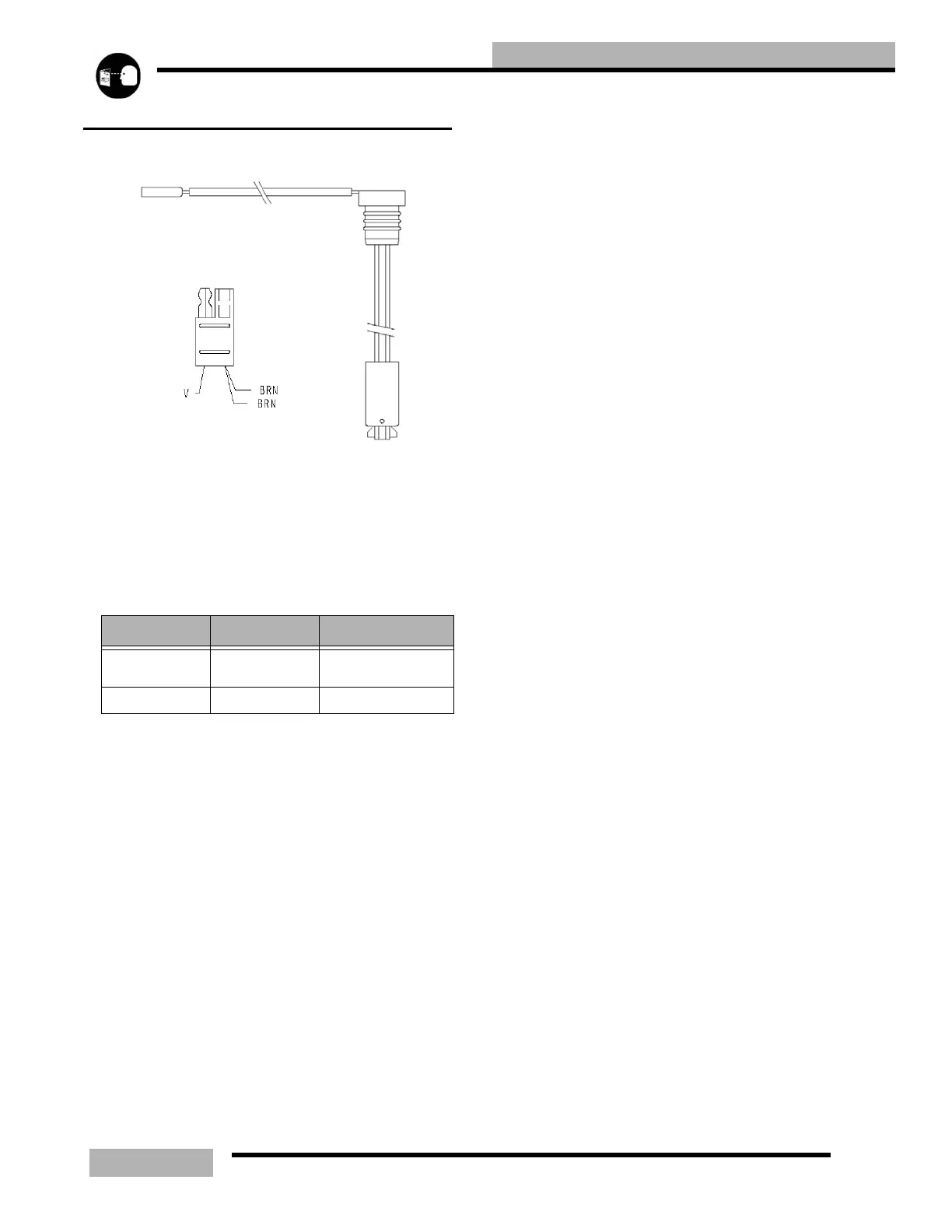

OIL LEVEL SENDER
The float (A) moves up and down the sender shaft (B) and
ECU sends a signal to the MFD when the level get to the point
where you need to add more oil. The oil level signal is
measured in resistance, FULL is open and <10Ω at lower
level.
Table 13-24:
COLOR ITEM VALUE
Violet Oil Level
Turns on lamp in gauge
when at low level
Brown Ground Ground
