6.19
ENGINE

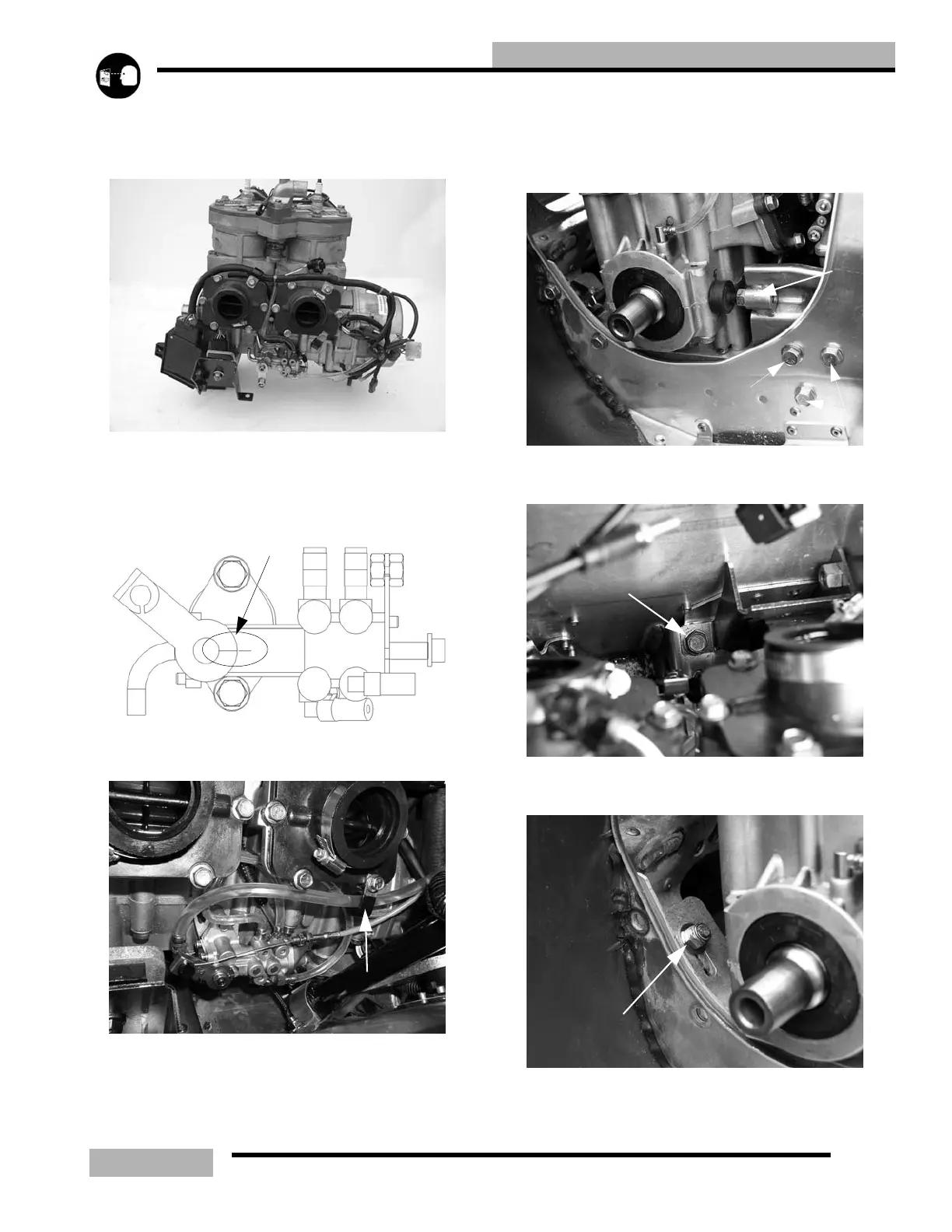

600 IQ ENGINE INSTALLATION
1. Make sure that you have the engine assembled so that it is
in the same state as it was when it was removed.
2. Place the engine on the shock tower bar and install the oil
pump cable.
3. Adjust the oil cable line so that the line is even (1) with the
index mark.
4. Install the oil supply line through the guide (2) on the
MAG intake.
5. Place the engine into the bulk head and make sure that it is
lined up with the motor mounts.
6. Insert the LH rear torque stop plate (3) between the motor
mount and the bulk head.
7. Apply blue Loctite to the fastener (4) and torque all the
outside fasteners (4,5) to 28 ft-lb(38Nm).
8. Install the LH rear motor mount fastener (6) and torque to
28 ft-lb (38Nm).
9. Insert the front engine strap washer and nylock nut (7) onto
the motor mount stud and torque to 28 ft-lb (38Nm).
1
2
4
3
5
6
7
