6.20
ENGINE

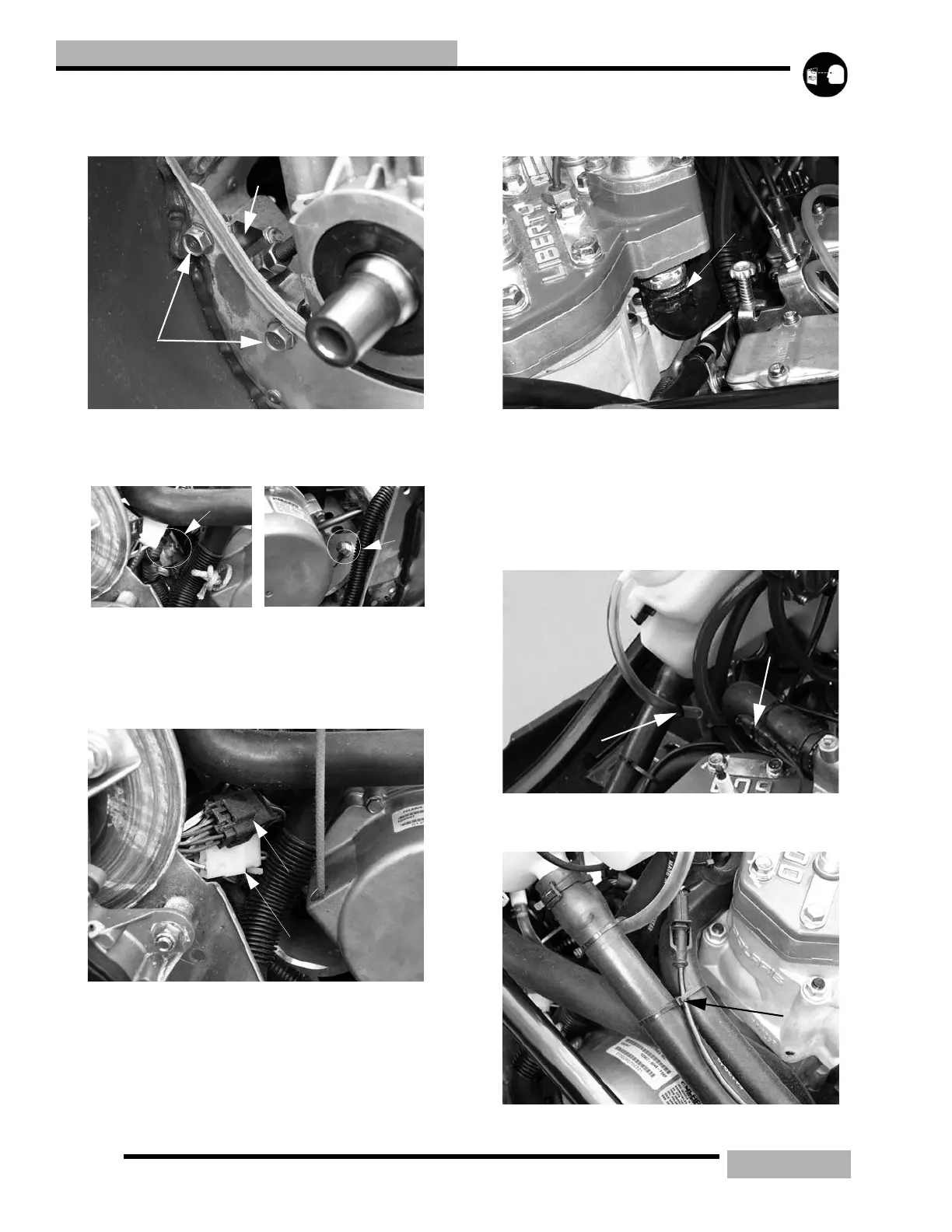

10. Insert the front torque stop assembly (8) and torque the
fasteners (9) to 28 ft-lb (38Nm).
11. Install the RH rear (10) and front (11) motor mount
washers and nylock nuts onto the motor mount studs.
Torque to 28 ft-lb (38Nm).
12. Adjust both torque stops so that you have a clearance of
.010”-.030” (.25-.75mm).
13. Connect the Regulator Rectifier (12) and Stator (13)
connections.
14. Connect the thermostat cooling hose and secure it with the
clamp (14).
15. Connect the cooling hose going to the water pump (front
of engine) to the water bottle and secure it with the clamp.
16. Connect the impulse line from the fuel pump to the
crankcase.
17. Route the over fill hose (15) and secure it with a cable tie.
18. Connect the water temp sensor (16) and secure it to the
thermostat hose with a cable tie.
19. Connect the DET sensor (17) and secure it to the cooling
hoses with a cable tie.
8
9
RH Rear
RH Front
10
11
12
13
14
15
16
17
To Next Page
