REAR SUSPENSION
TORSION SPRINGS

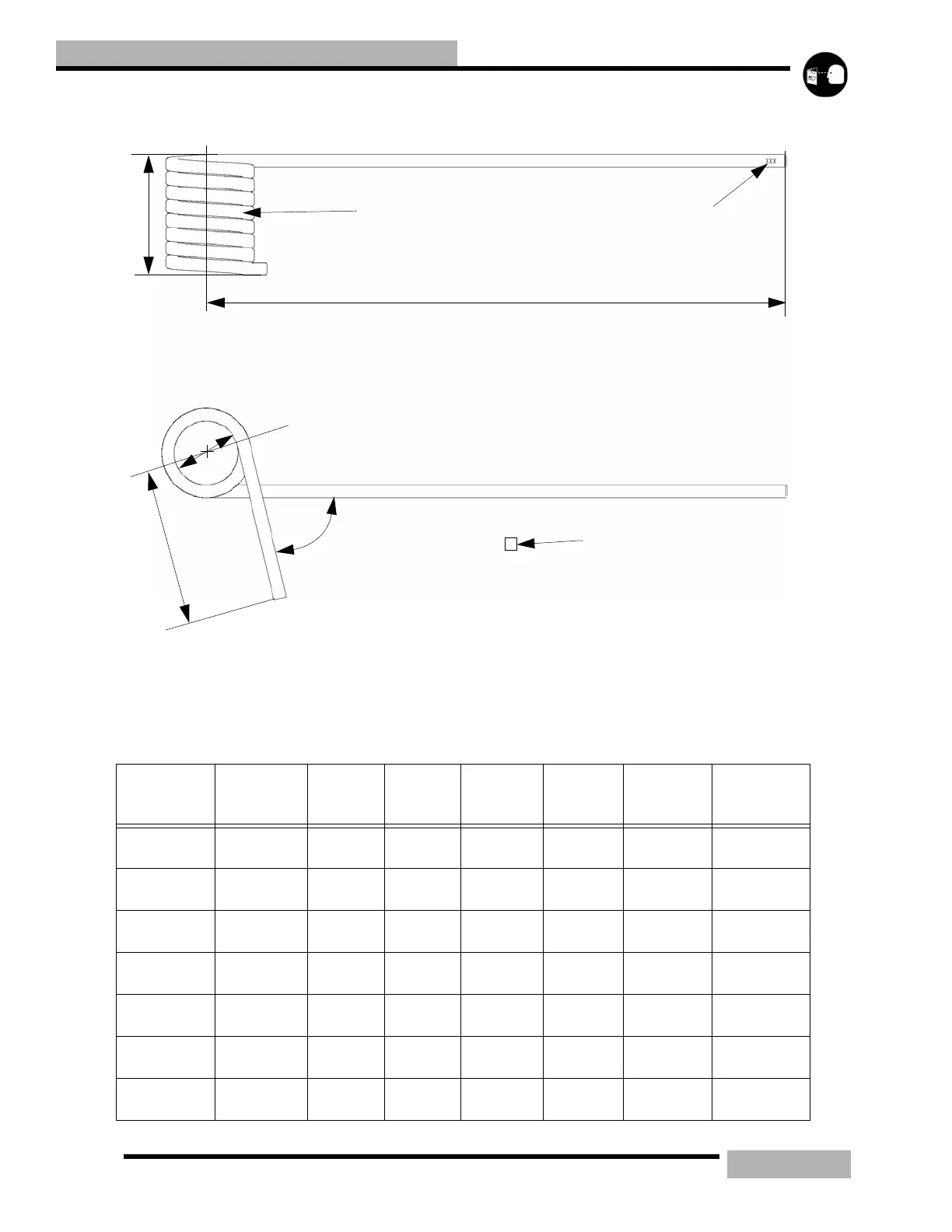

The torsion spring tension is determined by the following
factors.
1. Wire Diameter (B).
2. Number of coils (F).
3. Degree of the open angle (G).
A
B
C
D
E
F
G
H
Table 11-1: Square Torsion Springs
SPRING PN
(last 3 digits
(A)
WIRE
DIAMETER
inches (B)
LEG 1
inches (C)
LEG 2
inches (D)
COIL ID
inches (E)
# OF
COILS
inches (F)
DEGREES
OPEN
ANGLE (G)
SPRING
WIDTH
inches (H)
7042068 LH
7042069 RH
.359 16.5 4.5 1.95-2.01 8.64 47 3.75
7041911 LH
7041912 RH
.347 16.5 4.5 1.82-1.88 7.75 90 3.49
7041627 LH
7041628 RH
.347 16.5 4.5 1.82-1.88 7.71 77 3.45
7042064 LH
7042065 RH
.359 16.5 4.5 1.95-2.01 7.63 50 3.45
7042159 LH
7042160 RH
.347 15.625 3.75 1.89-1.91 6.71 77 3.45
7041902 LH
7041903 RH
.359 16.5 4.5 1.79-1.85 7.75 90 3.5
7041629 LH
7041630 RH
.359 16.5 4.5 1.79-1.85 7.71 77 3.46
