MAINTENANCE
Gearcases
Transmission (Main Gearcase)
Oil Change
The drain plug is located on the
bottom of the transmission.
Access the drain plug through the
drain hole in the skid plate.
1. Remove the fill plug.
2. Place a drain pan under the
drain plug. Remove the drain
plug. Drain the oil. Dispose
of used oil properly.
3. Wipe the magnetic end of the
drain plug clean to remove
accumulated metallic filings.
4. After the oil has drained com-
pletely, install a new sealing
washer.
5. Reinstall the drain plug.
Torque to specification.
6. Add the recommended oil as needed. Do not overfill.
7. Reinstall the fill plug. Torque to specification.
8. Check for leaks.

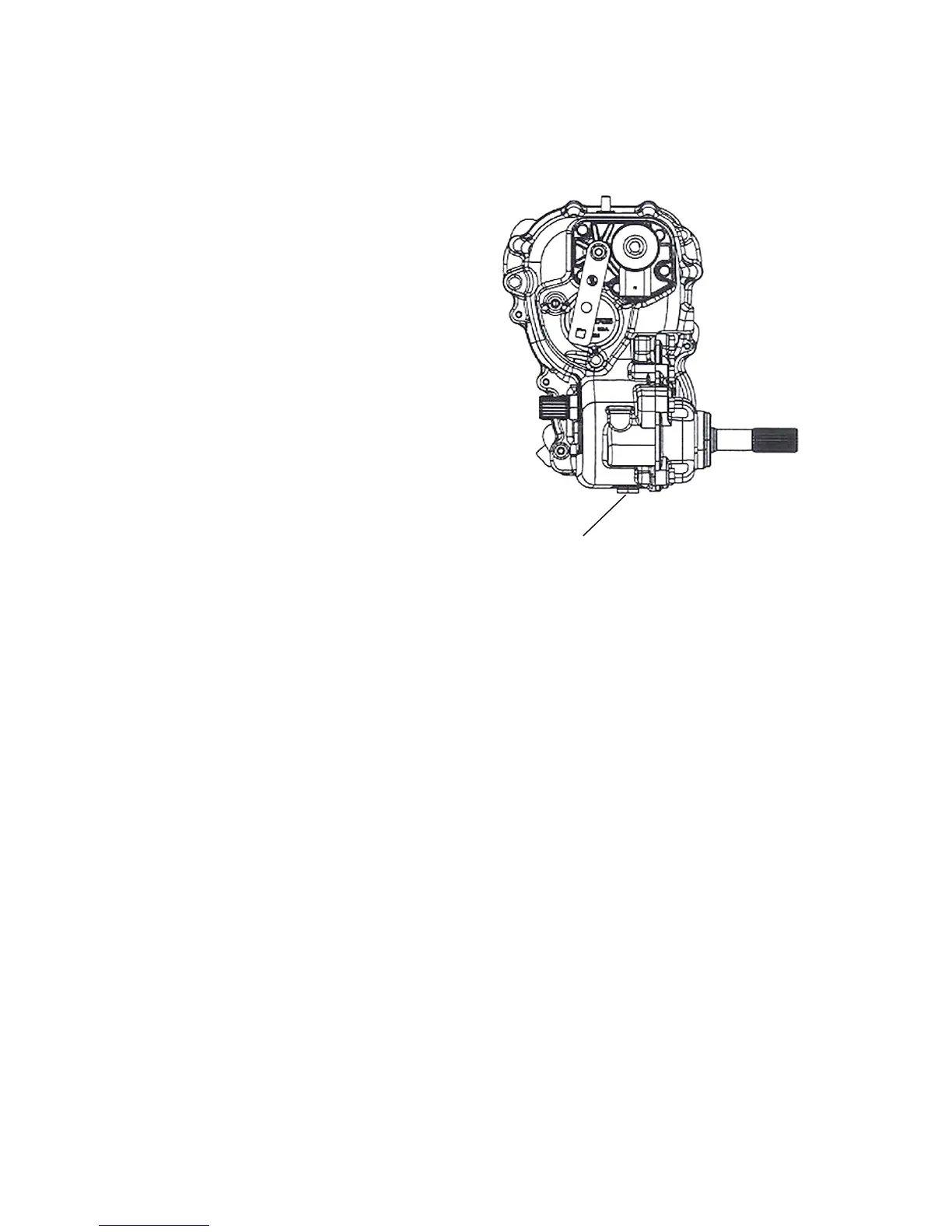

Drain Plug
