THE PERFECT FIT
Handlebar Adjustments

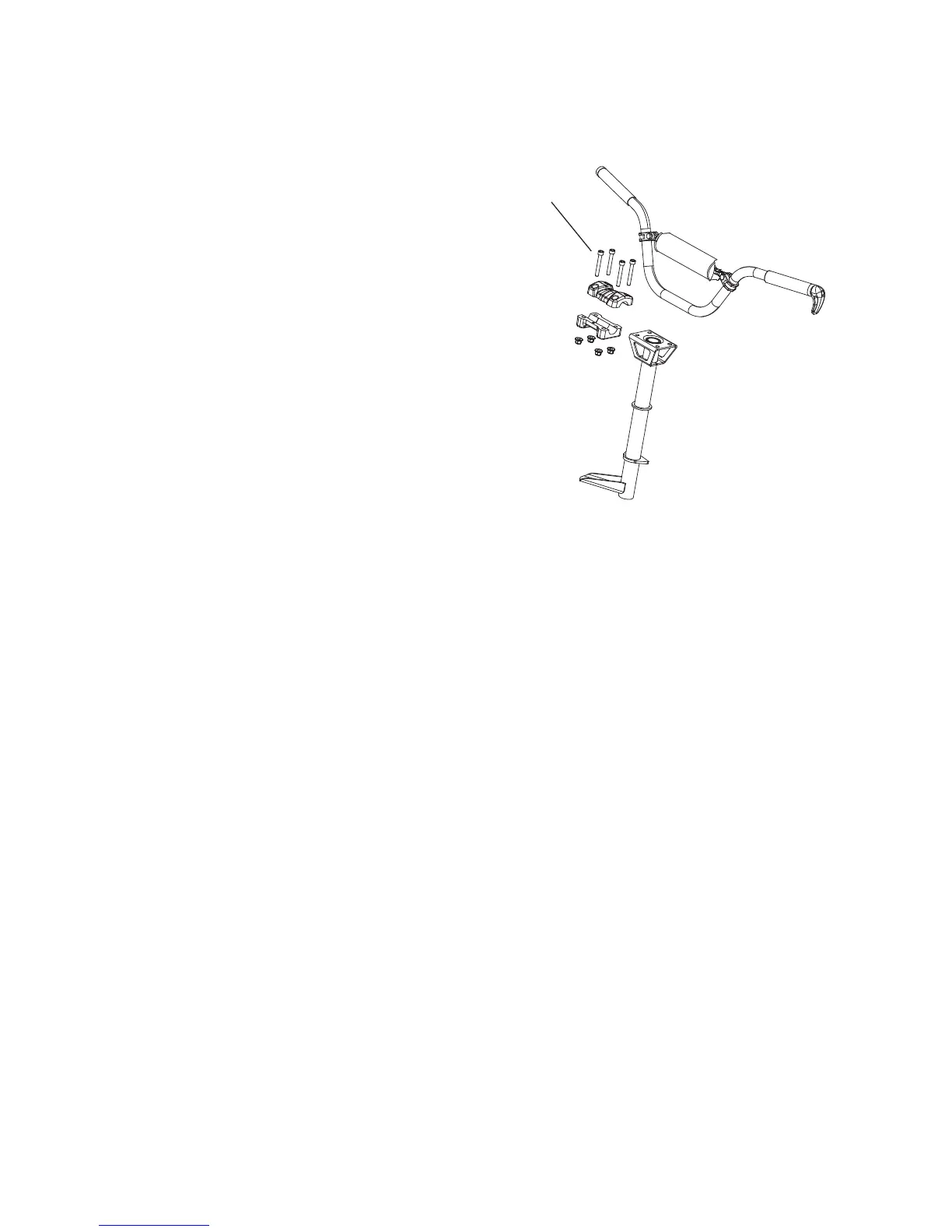

Handlebar Angle
1. Loosen the four bolts on the
top of the adjuster block. If
necessary, pry the blocks
apart with a screwdriver.
2. Adjust the handlebar
forward or rearward to the
desired angle. Be sure the
handlebar, brake lever and
throttle lever operate
smoothly and do not hit the
gas tank, windshield or any
other part of the machine
when turned fully to the left
or right. If necessary, loosen
the set screws for the left
and right controls, rotate the
controls slightly, then
tighten the set screws to the proper torque.
NOTICE: Do not stretch wires while adjusting the controls. Stretching the wires
could damage the handwarmers.
• Right control torque: 27 in. lbs. (3.05 Nm) +/- 10%.
• Left control torque: 24 in. lbs. (2.7 Nm) +/- 10%.
3. Tighten the bolts.
