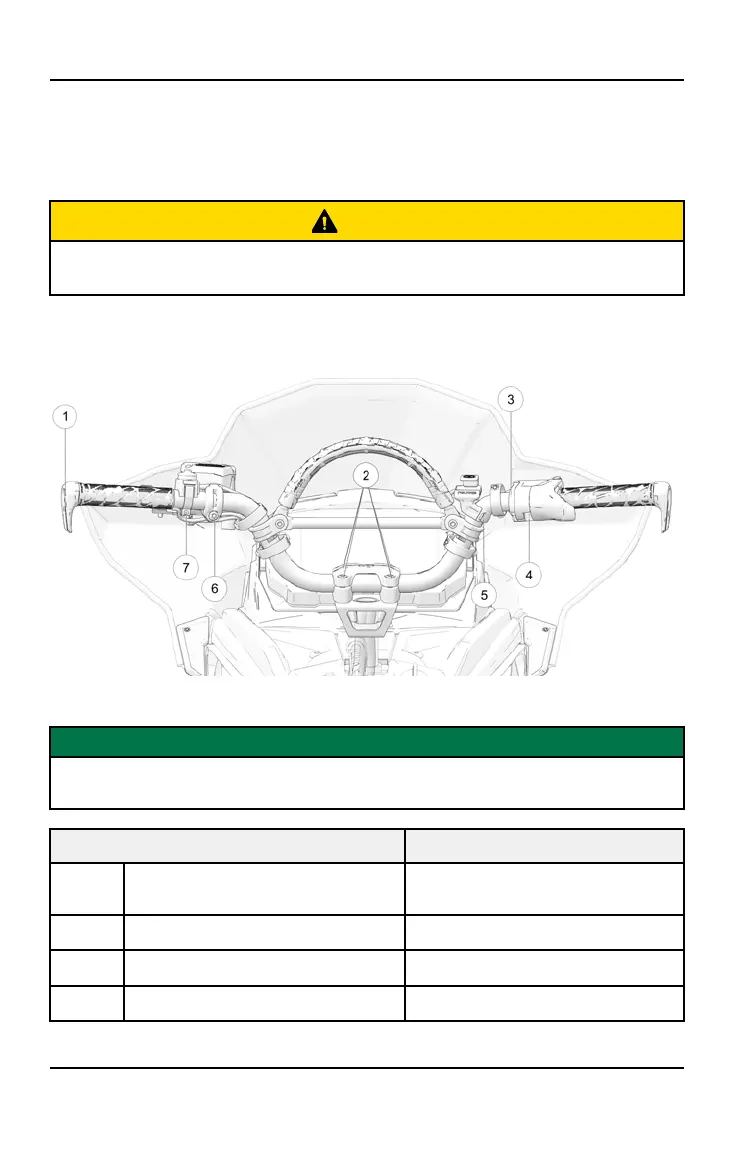

HANDLEBAR COMPONENT ALIGNMENT
Always loosen the mounting screws before moving a handlebar component.
Moving a component without first loosening its mounting screws may cut
grooves into the handlebar, making it difficult to secure the component.
CAUTION
Take care to avoid damaging hand warmer/brake switch wires when moving
components.
COMPONENT TORQUE VALUES
IMPORTANT
Do not over-torque the components listed below. Overtightening can lead to
component damage.
COMPONENT TORQUE
q
Handlebar Hook Screw Aluminum: 10 ft-lbs (13.5 N·m)
Steel: 18 ft-lbs (24 N·m)
w
Handlebar Clamp Screws 35 in-lbs (4 N·m)
e
Throttle Block Cover Screws 6 in-lbs (0.7 N·m)
r
Throttle Block Set Screw 27 in-lbs (3 N·m)
