DRIVE BELT INSTALLATION
1. With the L-wrench inserted into the threaded hole and the sheaves in the
open position, install the drive belt.
IMPORTANT
Install the belt so that the numbers can be read correctly on the left side of the
vehicle, or in the direction in which the belt was originally installed.
2. Rotate the belt clockwise to remove slack while removing the L-wrench.
3. Reinstall the side panel.
4. Break in the new belt. See page 117.
TRACK MAINTENANCE
TRACK INSPECTION
WARNING
Broken track rods can cause a rotating track to come off the snowmobile,
which could cause serious injury or death. Never operate with a damaged
track. Never rotate a damaged track under power.
NOTICE
The figures below are for reference only. Your model may differ slightly.

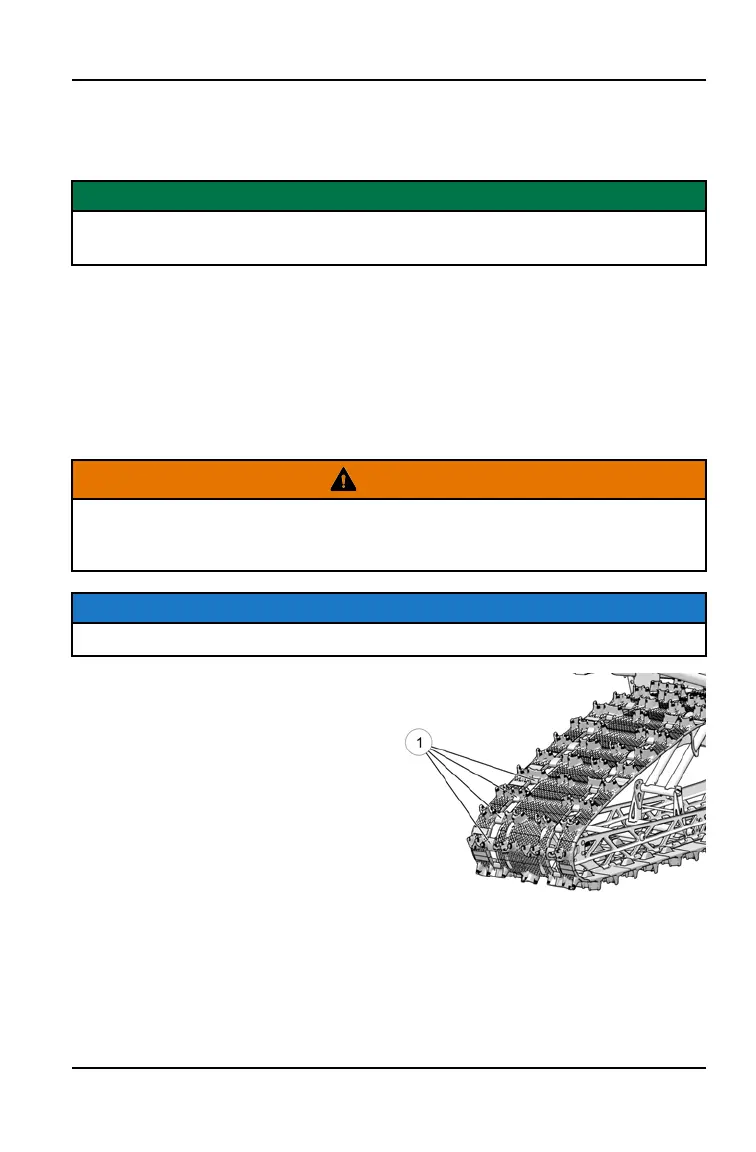

1. Using a hoist, safely lift and
support the rear of the
snowmobile off the ground.
2. Rotate the track by hand to
check for damage.
3. Carefully examine the track
along the entire length of
each rod
q
. Bend the track
to check for breakage.
4. Replace the track if any rod damage is found.
153
MAINTENANCE
