FUEL SYSTEM/CARBURETION
4.2

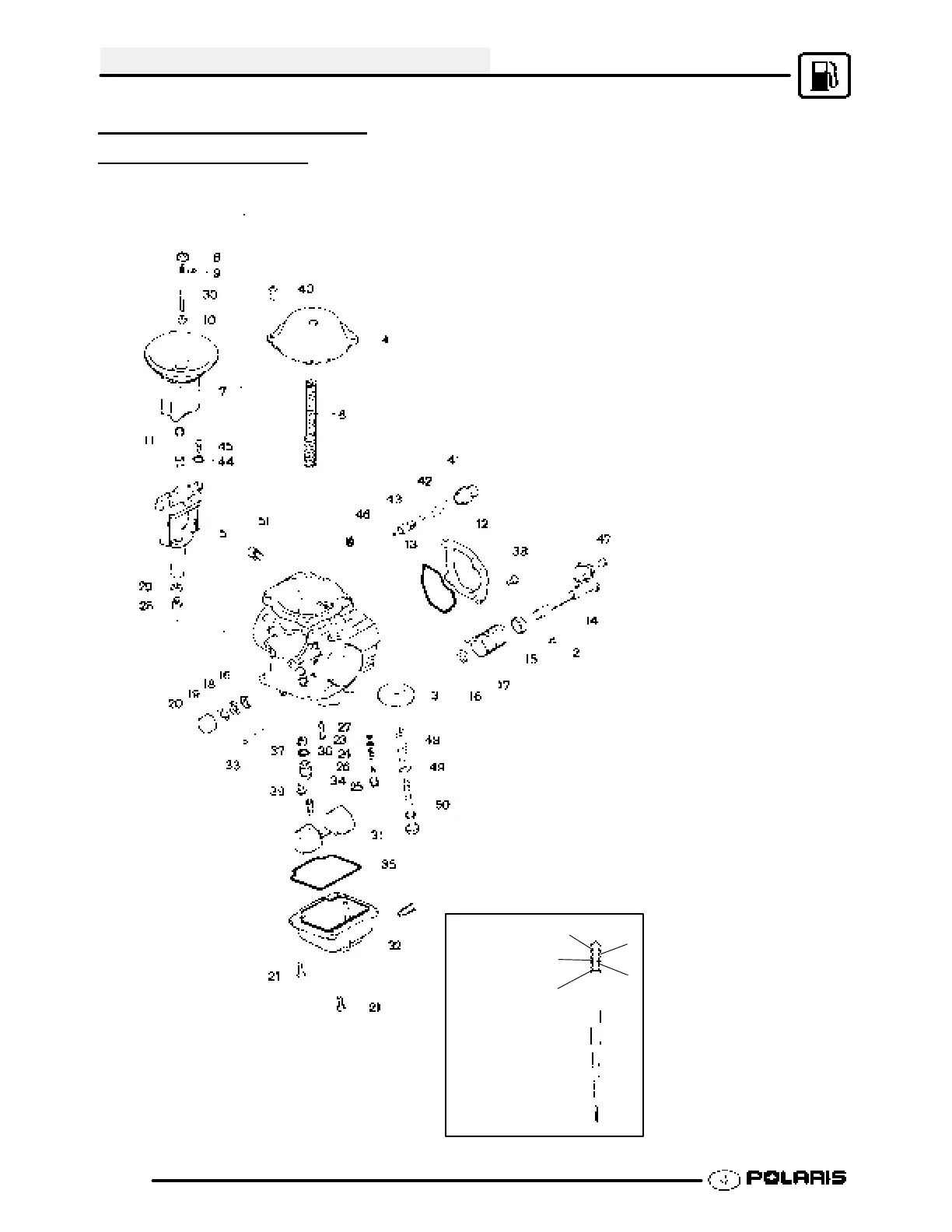

BST 34 CARBURETOR
EXPLODED
VIEW
1. Carburetor Assembly
2. Screw
3. Throttle Valve
4. Cover, Diaphragm
5. Jet Block Assembly
6. Spring
7. Diaphragm Assembly
8. Ring
9. “E” Ring
10. Ring
11. Needle Jet
12. Cover
13. O-Ring
14. Throttle Shaft Assembly
15. Ring
16. Seal
17. Spring
18. Packing
19. “E” Ring
20. Cap
21. Screw
22. Drain Screw
23. O-Ring
24. Washer
25. Adjuster
26. Spring
27. Pilot Jet
28. Main Jet
29. Washer
30. Jet Needle
31. Float Assembly
32. Float Body Assembly
33. Float Pin
34. Needle Valve
35. O-Ring
36. O-Ring
37. Filter
38. Screw
39. Screw
40. Screw
41. Guide Holder
42. Spring
43. Plunger Assembly
44. Spring Washer
45. Screw
46. Air Jet
47. Cable Guide
48. Spring
49. Ring
50. Adjust Screw
51. Screw and Washer Assy.
Refer to Page 4.4 for Jet Part Numbers
1
2
3
4
5
Jet Needle
“E” Clip Position
22
(2x4 Only)
