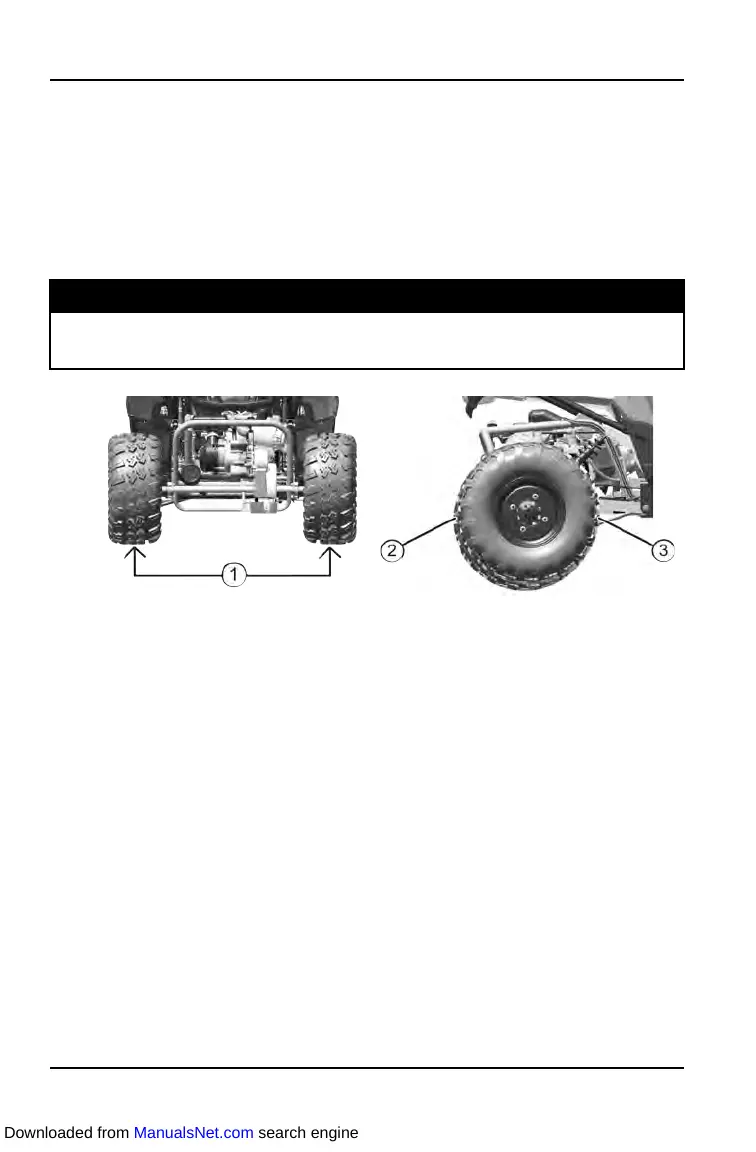

4. Rotate the tires 180° by moving the vehicle forward. Position chalk marks
facing rearward, even with the hub/axle center line.
5. Again measure the distance between the marks and record. Call this
measurement “3”. Subtract measurement “3” from measurement “2”. The
difference between measurements “2” and “3” is the vehicle toe alignment.
The recommended vehicle toe tolerance is 0 to 3.2 mm (0 to 1/8”) toe out.
This means the measurement at the front of the tire
w
is 0 to 3.2 mm (0 to 1/
8”) wider than the measurement at the rear
e
.
MEASUREMENT
Wheel Toe-Out:
0 to 3.2 mm (0 to 1/8”)
If you discover improper alignment, see your authorized dealer for service.
82
MAINTENANCE
