Install Chassis Assembly
Using the handles, lift the chassis assembly onto the installation base and secure.

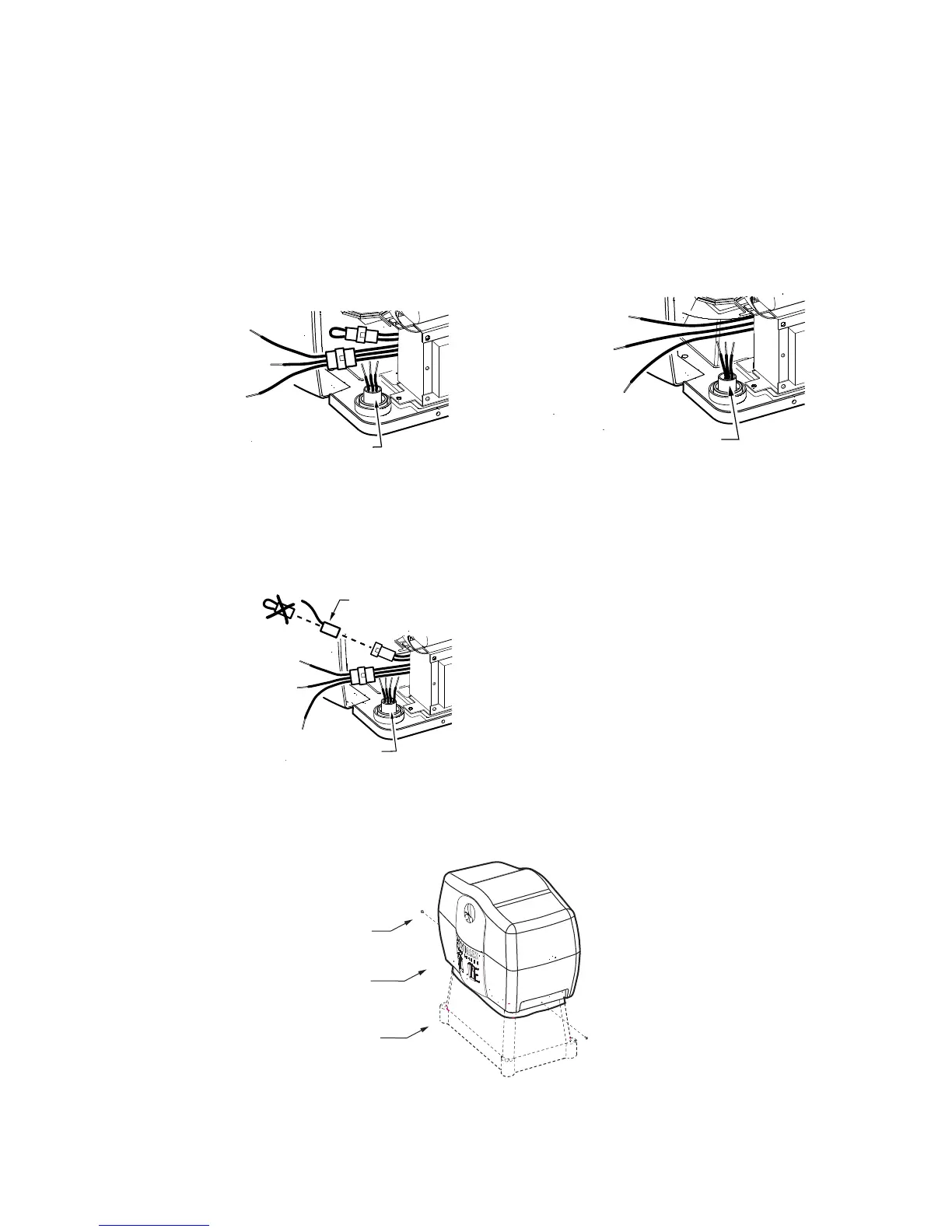

To connect the electrical supply, check the model number of your light driver and refer to the
wiring connection requirements below for the proper configuration.
Position and secure the cover onto the installation base/chassis assembly.
www.polarispool.com
Ground
(Green)
Neutral
(White)
Connect to incoming power
Main Power
120VAC
(Black)
(Install Color Wheel
Control plug)
(Discard
this plug )
Connect to incoming power
Color Wheel Control, Aux 2
120VAC (Red)
Ground
(Green)
Neutral
(White)
Main Power, Aux 1
120VAC (Black)
Ground
(Green)
Neutral
(White)
Connect to incoming power
Main Power
120VAC
(Black)
Model AD150, manual control light driver.
Model AD151, white light only light driver.
Model AD150, remotely controlled by Polaris
Sol 1000 or another external control system.
Installation Base
(Buried)
Ground Level
Screws
To Next Page
