MAINTENANCE
Oil F ilter and Change
(4-Stroke models with an external oil tank)
1. Place vehicle on a level surface.
2. Clean area around drain plug which is found at the bottom of the
oil tank or on the bottom of the engine.
3. Run engine for two to three minutes until warm. Shut engine off.
4. Place a drain pan beneath the plug and remove it.
5. Allow oil to drain completely.
6. Install a new sealing washer on oil drain plug. NOTE: The
sealing surfaces on the drain plug and the oil tank should be
clean and free of burrs, nicks or scratches.
7. Re install drain plug and torque to 14-17 ft. lbs. (1.93-2.35 kg/m)

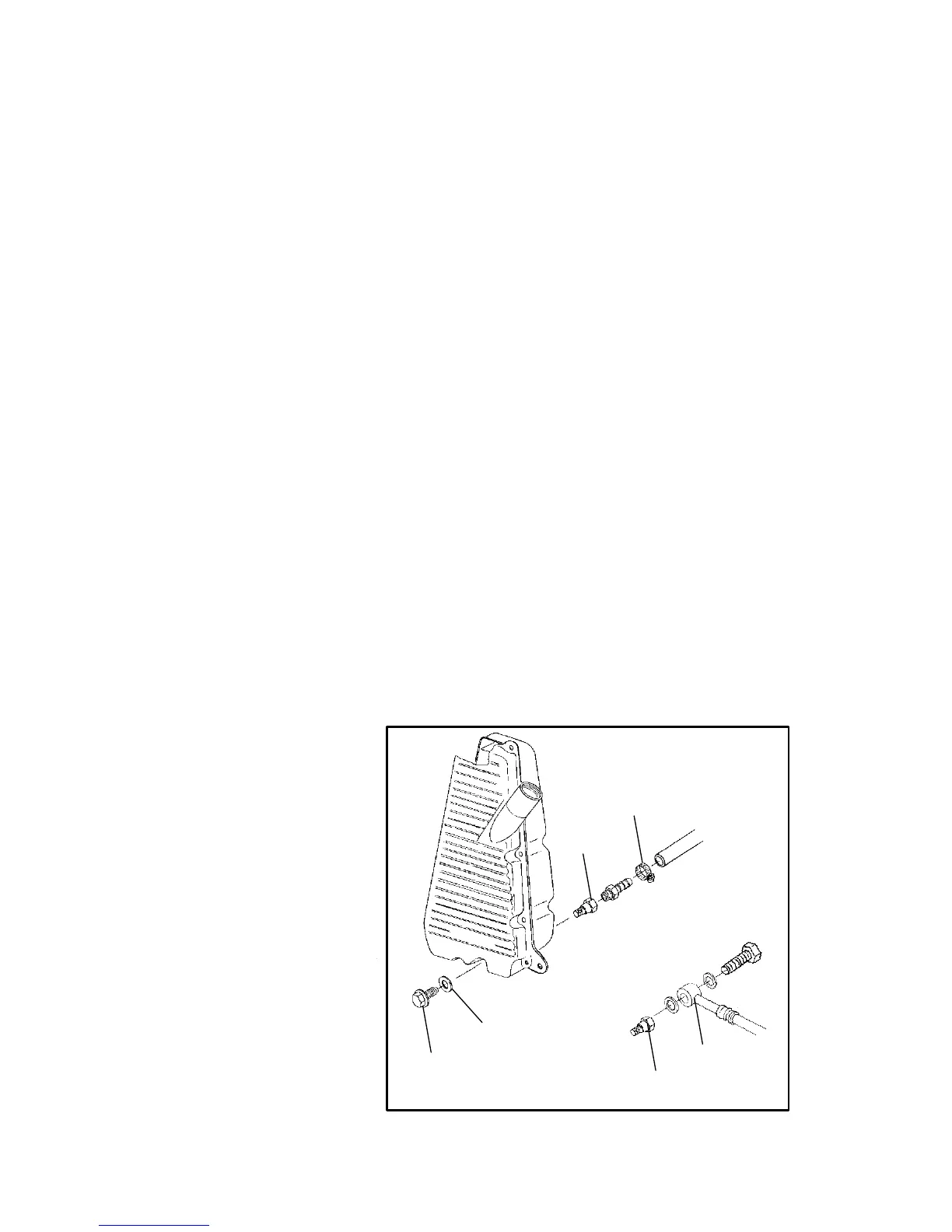

8. Disconnect the lower
oil delivery hose.
Remove the fitting
(C) from the oil tank.
Clean the fitting
screen. Reinstall
the fitting screen,
torquing to 14-17 ft.
lbs. Reattach oil
line. If banjo fitting
(D) is used, torque
to 14-17 ft. lbs. If
hose clamp (E) is
used, tighten to 25
in. lbs.
9. Place shop towels beneath oil filter. Using an oil filter wrench,
turn filter counterclockwise to remove.
10. Using a clean dry cloth, clean filter sealing surface on
crankcase.
OR
A
B
C
C
D
E
