160
MAINTENANCE
Headlight L amp Replacement (Gen IV)
1. Using a small flat blade screwdriver, push in on the lock tab
through the two small openings at the front of the headlight pod.
2. Lift the pod lightly while depressing the tabs.
3. Remove the screw in the back of the headlight pod
4. Lift pod cover up. Disconnect speedometer harnesses from
speedometer. Unplug indicator light harness and remove pod
cover.
5. Unplug headlamp from wiring harness.
6. Remove boot and locking collar from back of lamp housing.
7. Grasp base of lamp and lift it out.
8. Reverse previous steps to replace lamp and reassemble pod.
Make sure tab on lamp locates properly in housing.

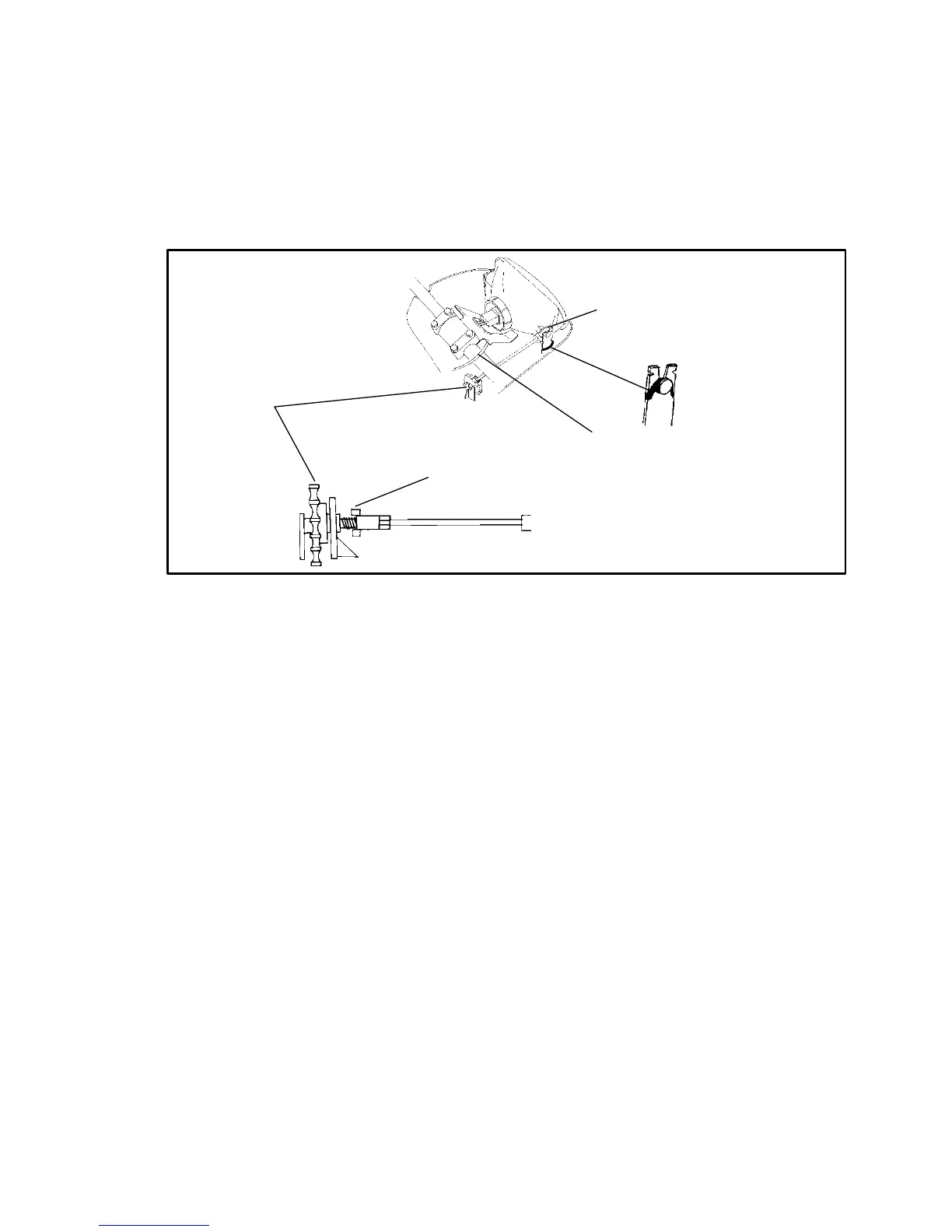

Snap pins
into tabs
Position
knob in
slot and
secure in
locking
tabs
Slip O-Ring
over pin
Adjustment
Knob Stop
Route indicator
harness over
handlebar
To Next Page
