MAINTENANCE
Taillight/Brakelight Lamp Replacement
If the taillight/brakelight does not
work the lamp may need to be re-
placed.

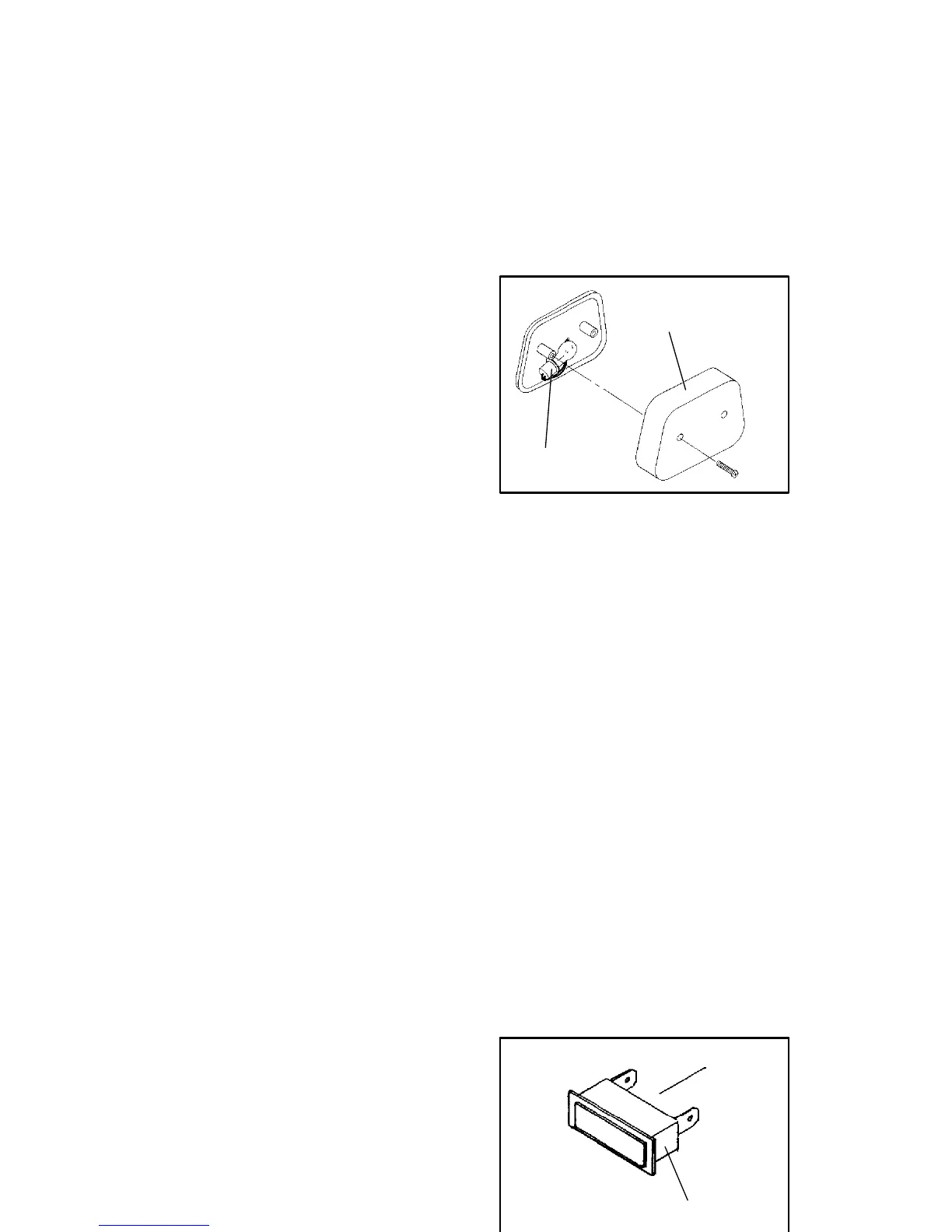

1. From the rear of the taillight re-
move two screws holding lens
cover in place and remove
lens cover.
2. Remove lamp (A) and replace it
with recommended lamp.
3. Test the taillight/brakelight to see
that it’s working.
4. Rei ns tal l the lens cover (B) re-
movedinstep1.
Indicator Lamp Replacement - Style I
1. Remove the upperheadlight pod (Gen 4)or the front cover(Gen
2) to access the back of the indicator panel.
2. Using a small, straight blade screwdriver, turn the base of
the bad bulb 1/4 turn counter clockwise.
3. Use a needle nose plier or similar tool to pull the lamp out
of the indicator panel housing.
4.Insertthe new bulb and seatit by turning it1/4 turnclockwise.
5. Reassembly pod or front cover.
Indicator Lamp Replacement - Style II
1. Remove mounting panel as re-
quired.
2. Unplug light from harness, de-
press locking tabs (C) and re-
move from pod.
3. Install new light and reassemble
panel.
B
A
C
To Next Page
