CONTROL AND PARTS FUNCTIONS
Indicator Lights
Each Polaris ATV has indicator lights. The configuration of these
lights differs with individual models and not every model is
equipped with all the lights. The information in your Owner ’s
Manual Supplement and in the following box will help you identify
the lights on your machine and their function.

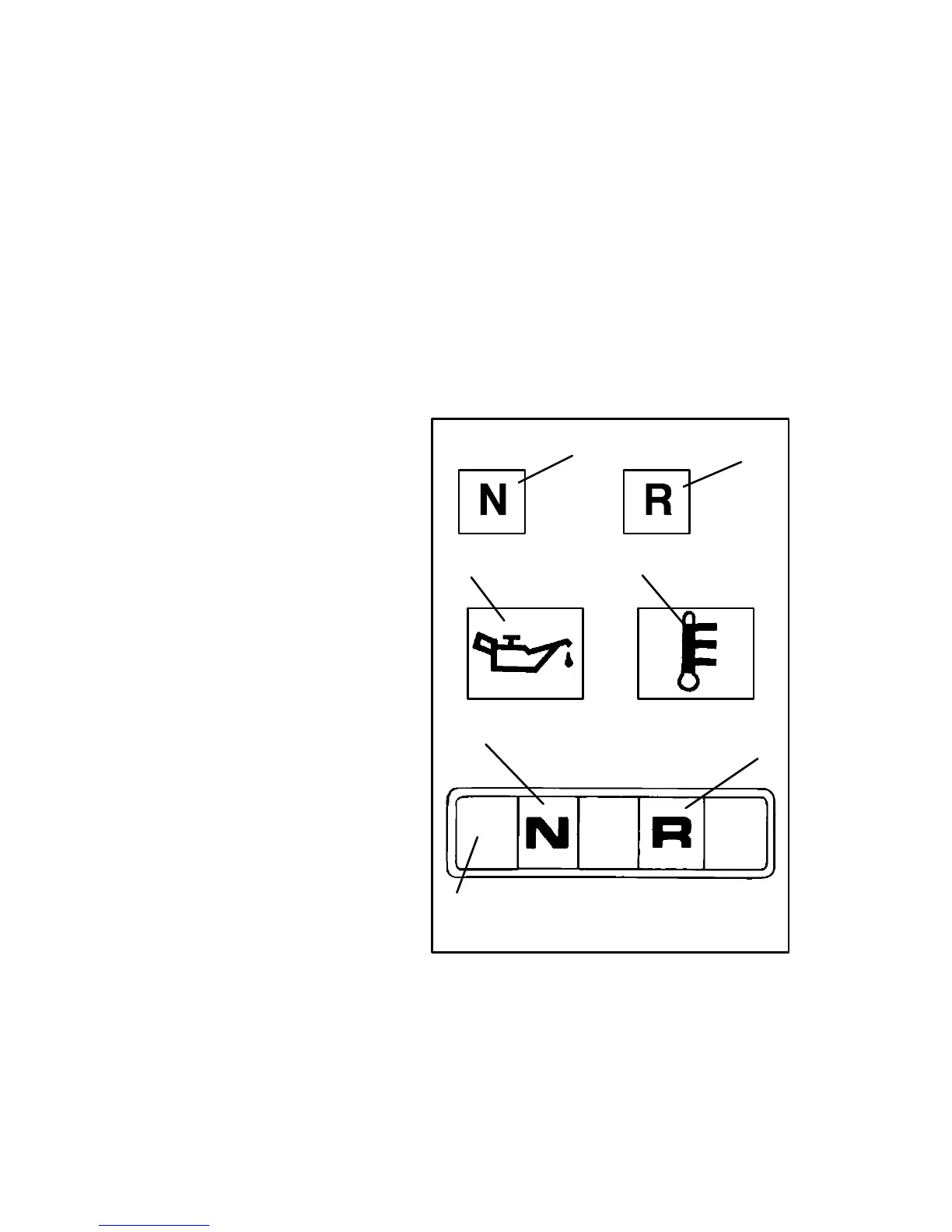

1.Transmission Neutral
(Green)
2. Transmission Reverse
(Yellow)
3. Oil Warning (Red) On 2
cycle models, this light in-
dicates a low oil level.
4. High Temp (Red) (Will light
only if engine overheats)
5. All Wheel Drive (Red) (lo-
cated on the LH handle-
bar) Refer to page 52.
6. High Beam Indicator
(Blue) (located on the LH
switch on models
equipped with Hi-Lo beam
lights)
With engine running, verify function of indicator lights each time
ATV is used.
NOTE: The taillight is on whenever the main switch (key) is in the
on position. Turn the key off to prevent battery drain.
