64
CONTROL AND PARTS FUNCTIONS
Drain the recoil housing after operating the ATV in very wet condi-
tions. This should also be done before storing the ATV. The drain
screw is located at the bottom of the recoil housing. Using a
wrench, remove the screw. Reinstall screw once housing has
been drained.
Water will enter the recoil
housing if the starter han-
dle is disengaged from the
rope guide when under
water.
After travelling in wet
areas the recoil housing
and starter should always
be drained completely by
removing the recoil.
Do not open the crankcase
drain unless the engine
has ingested water. On
4-cycle engines, some en-
gine oil will be lost if crank-
case drain is opened.
On the Trail Blazer, the re-
coil handle must be be-
hind the heat shield for it
to seal properly. If it is not
sealed properly, watermay
enter the recoil housing
and damage components.

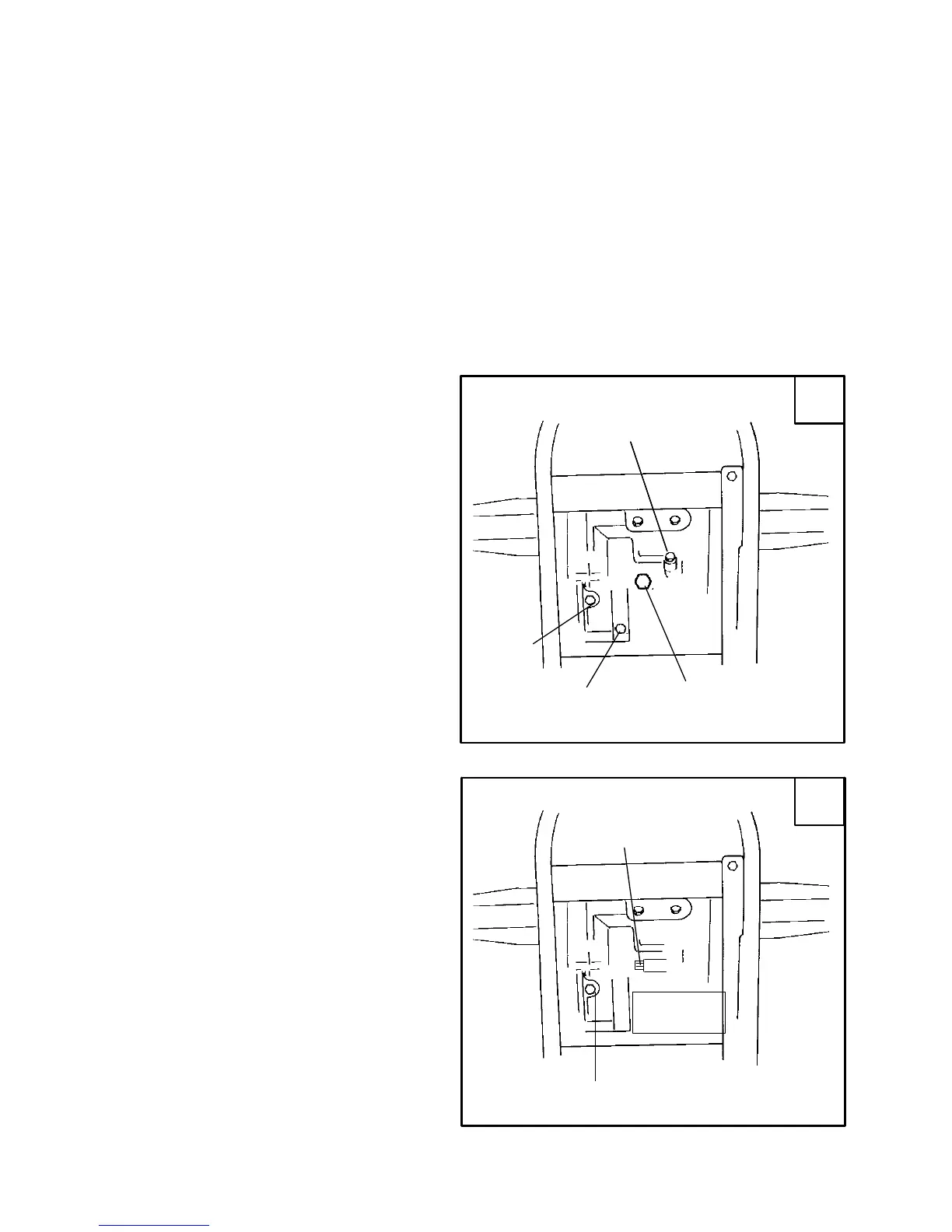

A - 250 and 400 Engines
B - 4-Cycle Engines
1. Crankcase Drain 2. Starter Pinion Drain
3. Re coil Drain (above front prop shaft on shaft drive models)
4. Counter Balance Drain (400s)
3
2
4
3
1
1
A
B
