MAINTENANCE AND LUBRICATION
Lubrication
Transmission Lubrication - Models with Fill Plug
Scrambler 500 4x4, Xplorer 400, Xplorer 4x4, Magnum
500, Magnum 325 4x4, Magnum 325 2x4
The transmission fill plug is located on the right side of the machine
behind the propshaft shield or footwell.
The transmission lubricant level should be checked every six months or
1000 miles (1600 km), whichever comes first. Transmission oil should
be changed annually. With the ATV on a level surface, remove fill

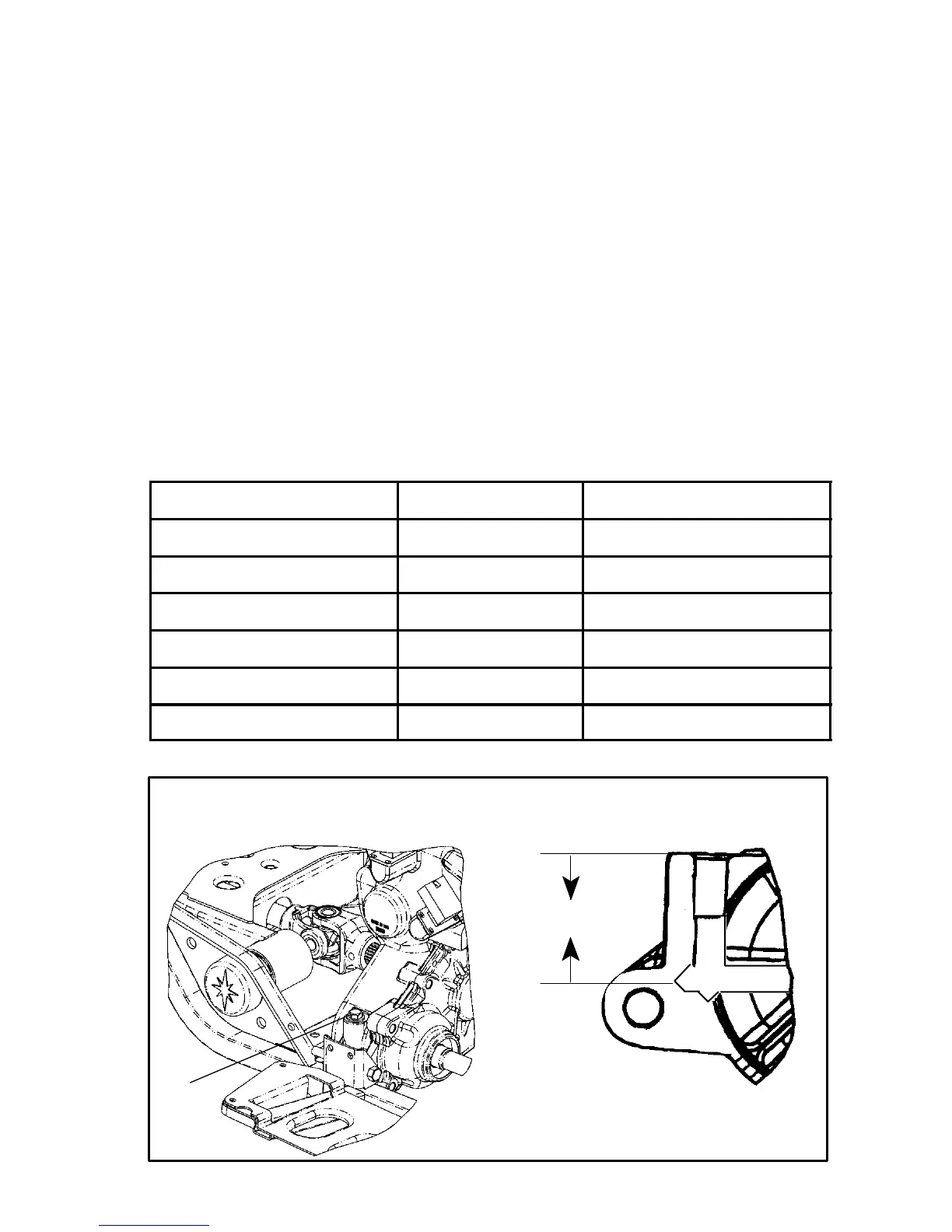

plug (1) and check the lubricant level. Use the illustration and the chart
below to determine the correct fluid level. The correct transmission
lubricant to use is Polaris Premium Synthetic Gearcase Lubricant (PN
2871478).
Model
Oil Level “A” Oil Fill Ounces (ml)
Scrambler 500 4x4 15/8″ 27 (800)
Xplorer 400 15/8″ 27 (800)
Xplorer 4x4 15/8″ 27 (800)
Magnum 500 15/8″ 13.5 (400)
Magnum 325 4x4 15/8″ 13.5 (400)
Magnum 325 2x4 3/4″ 27 (800)
Magnum 4x4 Shown
1
A
To Next Page
