FEATURES
Instrumentation

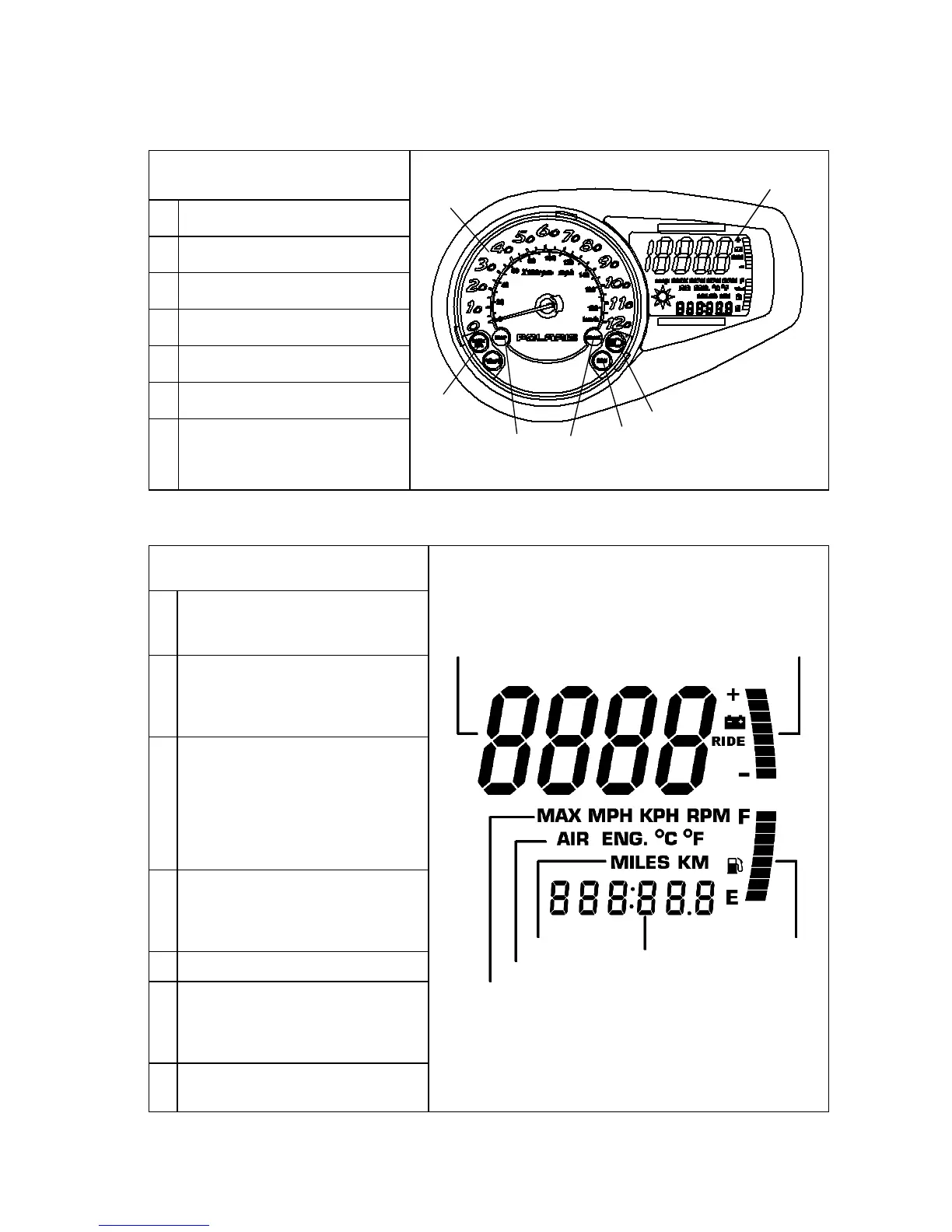

MFD Component Identification
Digital Display Identification
Item
1 Analog Gauge
2 Digital Gauge
3 Check Engine Indicator
4 High Temp Indicator
5 Brake Indicator
6 Reverse Indicator
7 High Beam Indicator
Item
1 RPM or Speed
Altitude (if equipped)
Service Interval
2 Electrical System Voltage
Level (all models) and M-10
ACE Suspension Adjustment
(RIDE) (Cruiser only)
3 MAX - Maximum MPH/
KPH or RPM
MPH - Miles per hour
KPH - Kilometers per hour
RPM - Engine crankshaft
revolutions per
minute
4 Air Temp (if equipped)
Engine Temp
Degrees Celsius
Degrees Fahrenheit
5 Miles/Kilometers
6 Hours
Trip 1/ Tr ip 2/Tr i p F
Service Label
Altitude Label
7 Fuel Level (FS) or Turbo Boost
(FST)
1
2
3
4
5
6
7
1
2
3
4
5
6
7
