58
THE PERFECT FIT
IQ & SwitchBack Rear Suspension Adjustments
Initial Spring Preload Setting (Sag Method)

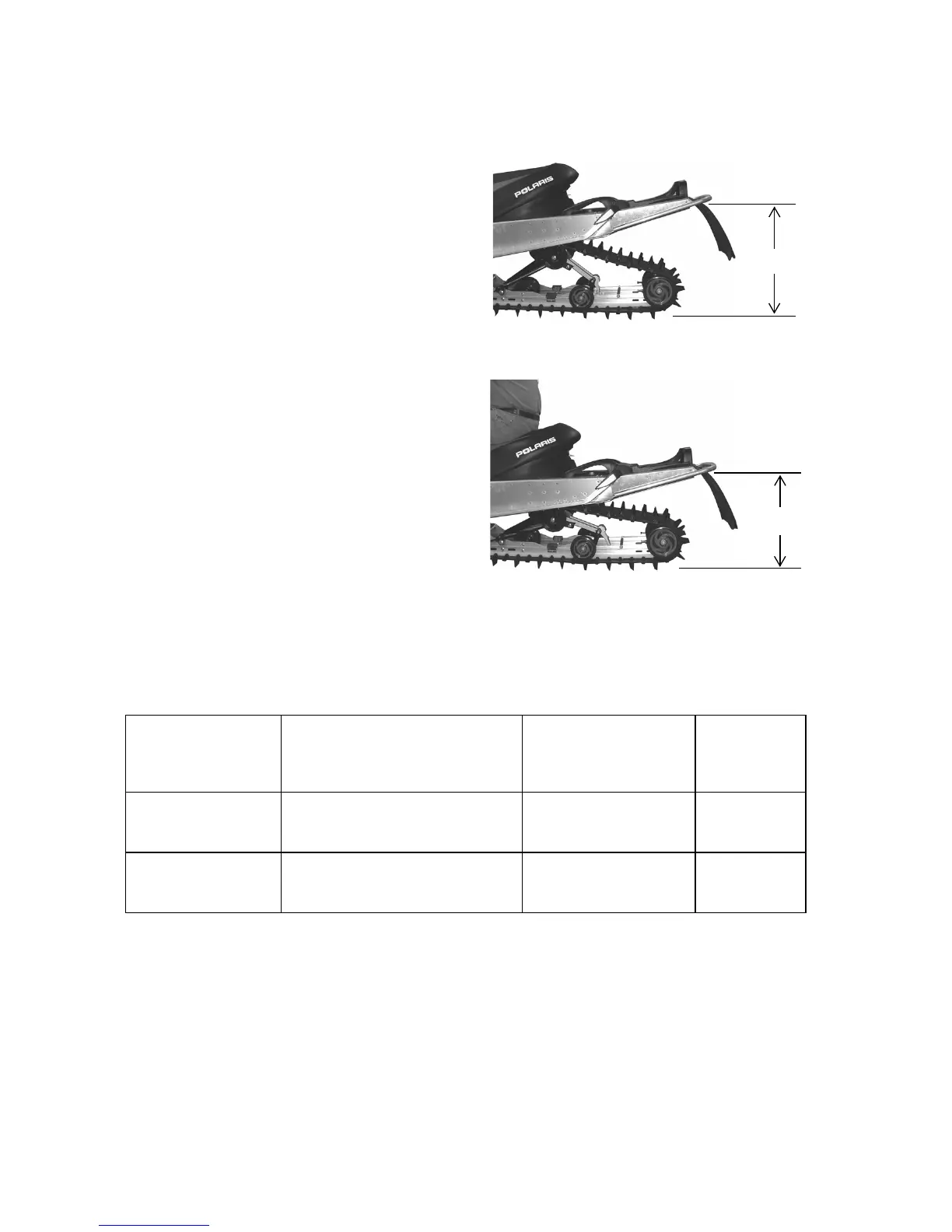

To set up the rear suspension torsion
spring preload, measure the distance
between the ground and rear bumper.
This is measurement X.
Take the first measurement with no
rider and with the rear suspension at
full extension.
NOTE: The rear bumper may need to
be lifted upward slightly to fully
extend the rear suspension.
Next, have the rider drop down hard
on the seat and bounce up and down
several times, collapsing the rear
suspension. With the rider seated,
measure the distance between the
ground and the rear bumper at the
exact location used for measure-
ment X. This is measurement Y.
To determine sag, commonly referred to as ride-in, subtract measure-
ment Y from X (sag=X-Y). If the measured sag is incorrect, adjust the
FRA position and/or rear torsion spring preload.
This is only an initial setup, and final spring preload may vary based on
rider preference and riding conditions.
Suspension Recommended Sag Adjustment
See
Page
IQ (121) 4-5 inches (10-13 cm) Torsion Spring
Preload
59
SwitchBack
(144)
5 inches (13 cm)
(see note below)
Torsion Spring
Preload
63
X
Y
