FIRST USE INSTRUCTIONS
Wheel Kit Installation
The unit comes with the rubber
mounting feet installed. If you
wish to install the wheel kit,
please perform the following
procedure.

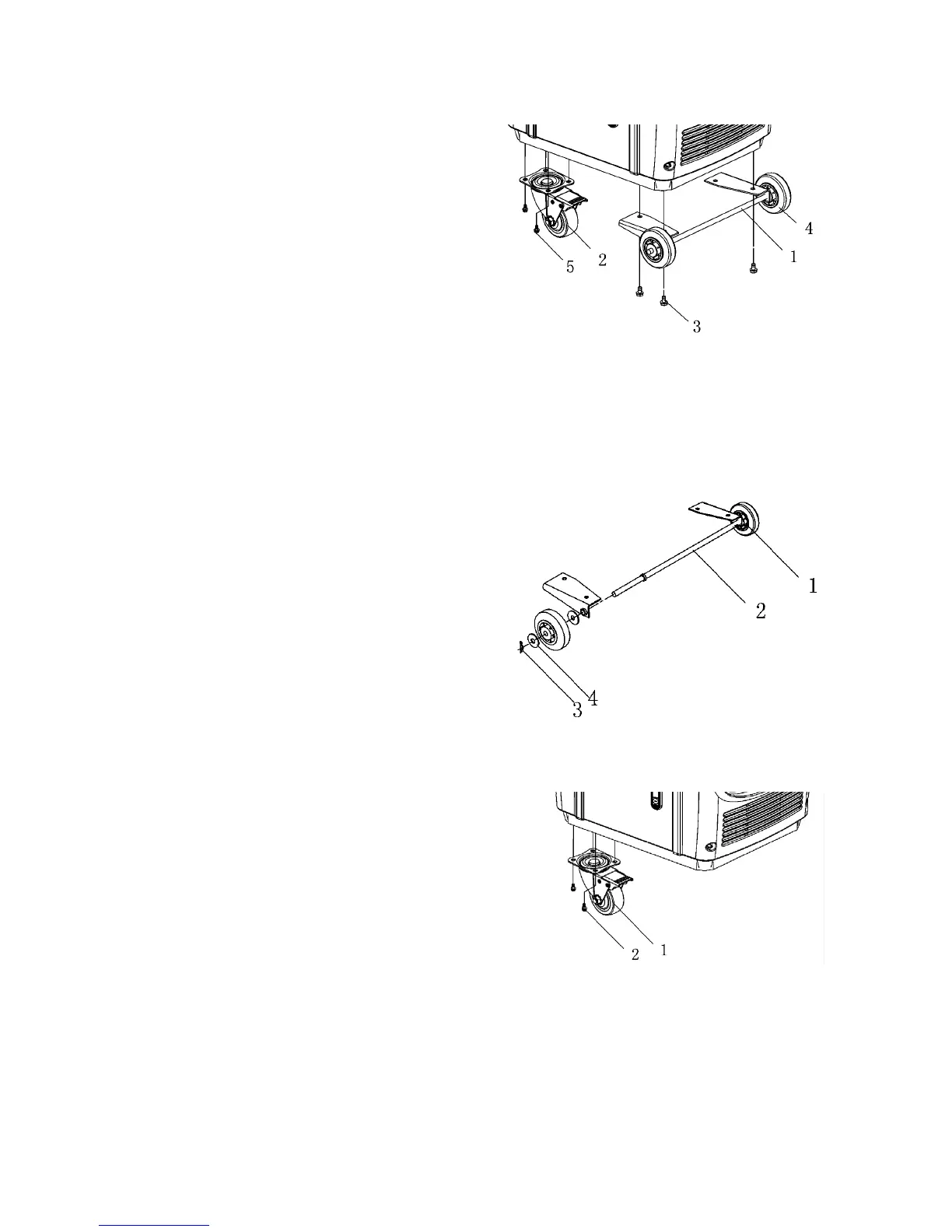

1. Axle assembly (1)
2. Locking swivel wheel (2)
3. Bolt M8X16 (4)
4. Wheel (2)
5. Bolt M6X16 (8)
Wheel assembly
First remove all four rubber mounting feet.
Put a washer on each side of
the wheel then slide them on
the axle securing with a lock
pin.
1. Wheel (2)
2. Axle (1)
3. Lock pin (2)
4. Washer (4)
Locking swivel wheel
Secure each locking swivel
wheel with 4 M6X16 bolts.
1. Locking swivel wheel
2. Bolt M6X16
Note: Make sure to push two
universal wheels to "lock"
position when the generator
is running, in transportation
and storage.
