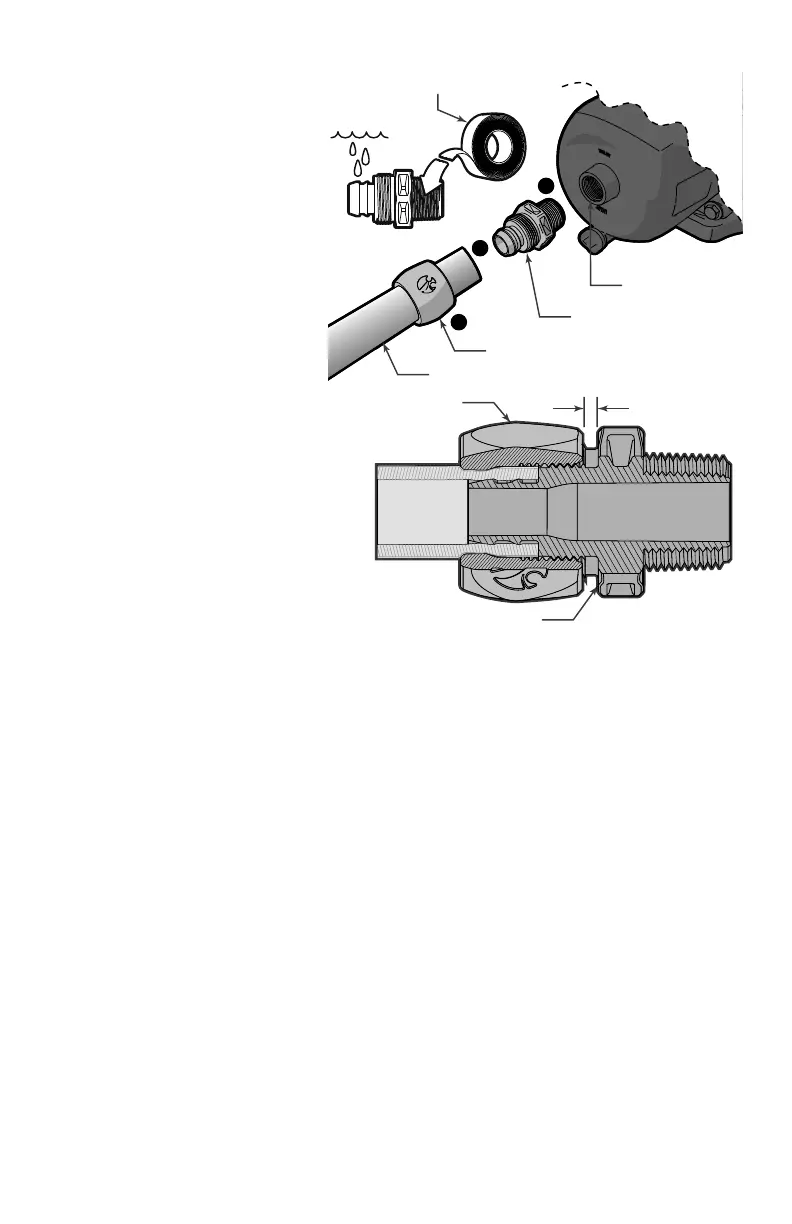

2. Install quick connect
fittings and flexible hose.
(R0617100), (R0621000),
(P19)
• Apply four (4) to six (6)
wraps of PTFE (Teflon
®
)
tape to the tapered thread
of the connector barb.
Be sure to wrap the tape
around the threads in
the OPPOSITE direction
that the connector
will be rotating during
installation. This will
ensure a proper water
tight seal.
• Thread and tighten the
tapered thread of the
connector barb into the pump
port on the pump body.
• Trim reinforced hose to
required length. Make sure
cut is clean and square. Avoid
unnecessary loops or bends in the hose.
• Slide connector nut onto the trimmed end
of the hose with threaded end toward the cut end of the hose.
• Apply water to connector barb to help hose slide over barbs. Push trimmed edge
of hose fully onto the connector barb.
• Slide/Rotate the connector nut to the barb to engage threads correctly, do
not cross thread connector nut. Tighten the connector nut until threads are no
longer visible (gap about 1/8” or just less than the width of two dimes), or until
it touches the barb face.
c
a
b
PTFE (Teflon
™
)
Tape
Pump Inlet
Quick Connect Nut
Reinforced Hose
Barbed Fitting
Barb Face
Connector Nut
Barbed
Connector
Reinforced
Hose
Nut Gap
