Page 5
Section 4. cAPAcitoR BoX KitS
WARNING
To avoid the risk of property damage, severe
personal injury, and/or death, always
disconnect the power source before working
on a motor or its connected load.
WARNING
To avoid the risk of property damage, severe
personal injury, and/or death, make sure that
the control switch or time clock is installed in
an accessible location so that in the event of
an equipment failure or a loose plumbing
tting the equipment not be in the same area
as the pool pump, lter, and other equipment.
CAUTION
The pump must be permanently connected to
a dedicated electrical circuit. No other
equipment, lights, appliances or outlets may
be connected to the pump circuit, with the
exception of devices that may be required to
operate simultaneously with the pump, such
as a chlorinating device or heater.

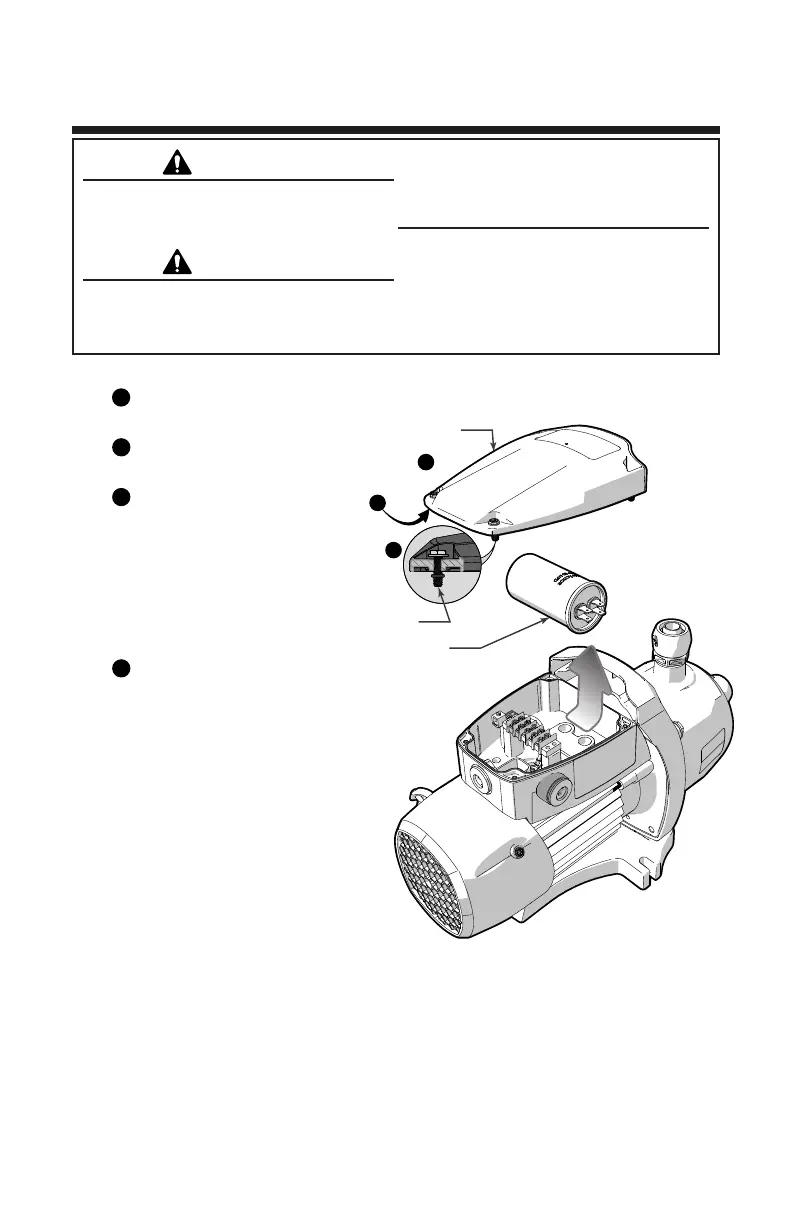

1. Remove the capacitor housing cover. (R0722900)
Loosen but do not remove the 4 screws securing the capacitor cover to the
capacitor housing.
Lift and remove
capacitor housing cover.
Check under capacitor
housing cover to ensure that
the seal is installed correctly.
2. Remove the capacitor.
(R0734500)
• Remove the 2 red flag
terminals from the capacitor.
Pull the capacitor free from
the capacitor box.
3. Install the capacitor. (R0734500)
• Check rating on the new capacitor to
confirm that it is the proper size
for the PB4SQ motor capacitor
should be rated at 30 mfd, 400VAC.
• Install the 2 red flag terminals on
the capacitor posts. The capacitor
is non-polarized, the terminals can
be installed on either post.
• Set capacitor into capacitor box.
4. Install the capacitor box cover. (R0722900)
• Check the new capacitor box cover for proper seating of the seal.
• Install using the four screws included in the kit. Do Not Over Tighten.
a
b
Housing Cover
Capacitor
c
Screw
Replacement Kit Instructions
