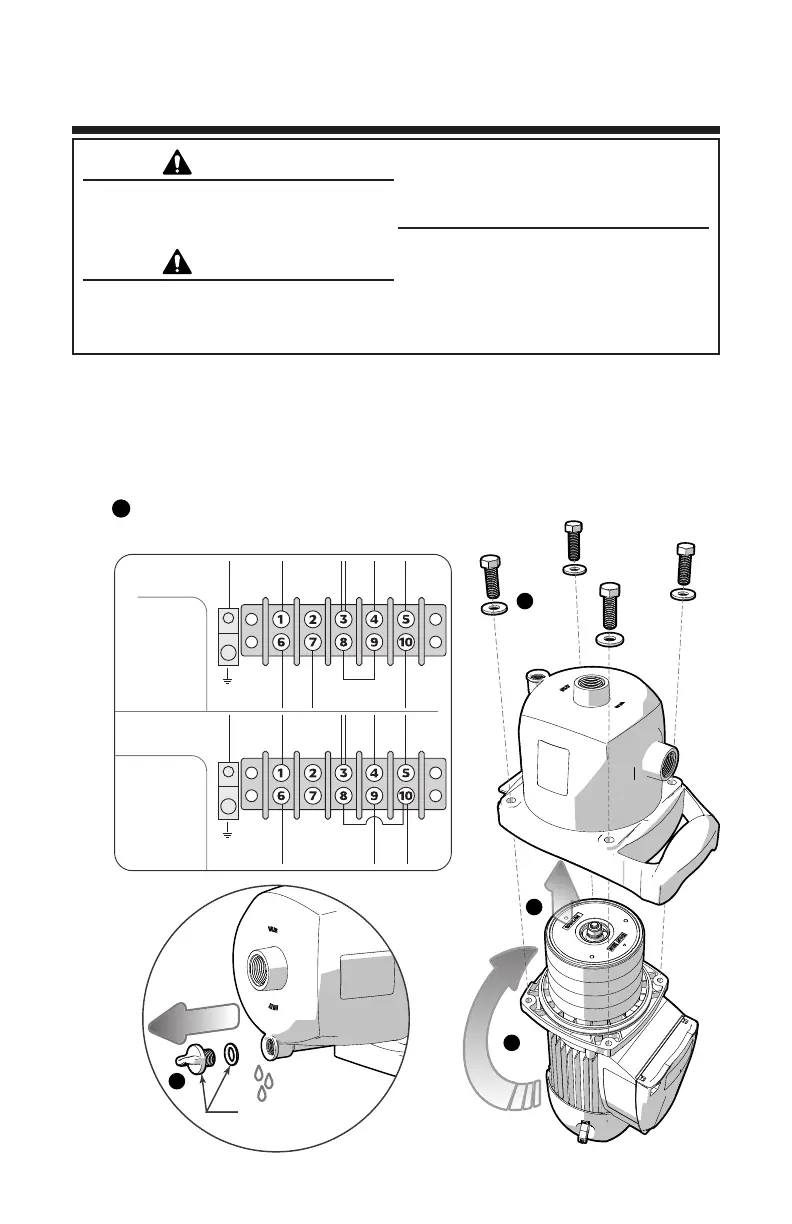

Polaris PB4SQ Replacement Instructions

Page 8
Section 7. PUMP coMPonentS
WARNING
To avoid the risk of property damage, severe
personal injury, and/or death, always
disconnect the power source before working
on a motor or its connected load.
WARNING
To avoid the risk of property damage, severe
personal injury, and/or death, make sure that
the control switch or time clock is installed in
an accessible location so that in the event of
an equipment failure or a loose plumbing
 tting the equipment not be in the same area
as the pool pump,  lter, and other equipment.
CAUTION
The pump must be permanently connected to
a dedicated electrical circuit. No other
equipment, lights, appliances or outlets may
be connected to the pump circuit, with the
exception of devices that may be required to
operate simultaneously with the pump, such
as a chlorinating device or heater.
• Disconnect electrical power to the pump at the breakers.
• Allow 5 minutes for the capacitor to discharge before servicing.
• Remove the capacitor housing cover by following steps 1-4 in section 3. (R0722900)
• Disconnect the high voltage wiring as illustrated in the wiring diagram.
1. Remove the drain plug. (R0723100) (R0734300)
a
Loosen and remove the drain plug and
drain plug O-ring
c
b
d
Drain Plug O-ring
Wiring For
115v 60hz
Wiring for
230v 60hz
Factory wiring 230V - White Wire in 8 & 9 - Yellow Wire in 7
T
o change to
115v
- Move White Wire
from 9 to 10
- Move
Yellow Wire
from 7 to 9
BLACK
L1 L2
RED
RED
(CAP)
WHITE
WHITE
BLUE
YELLOW
BLACK
GREEN
GREEN
L1 N
RED
RED
(CAP) WHITE
WHITE
BLUE
YELLOW
H0540300_REVB
FACTORY WIRING
G
G
a
Drain Plug
& O-ring
Polaris
®
PB4SQ™ Booster Pump

Polaris PB4SQ Specifications

General

Type	Booster Pump
Voltage	115/230V
Max Head	60 ft
Inlet Size	1.5 inches
Outlet Size	1.5 inches
Horsepower	0.75 HP
Motor Type	TEFC
