Drive Chain In sp ectio n an d Adju stment (90cc Models)
1. Check the amount of chain slack by moving the vehicle slightly forward to gain slack
at the t op side of the chain.

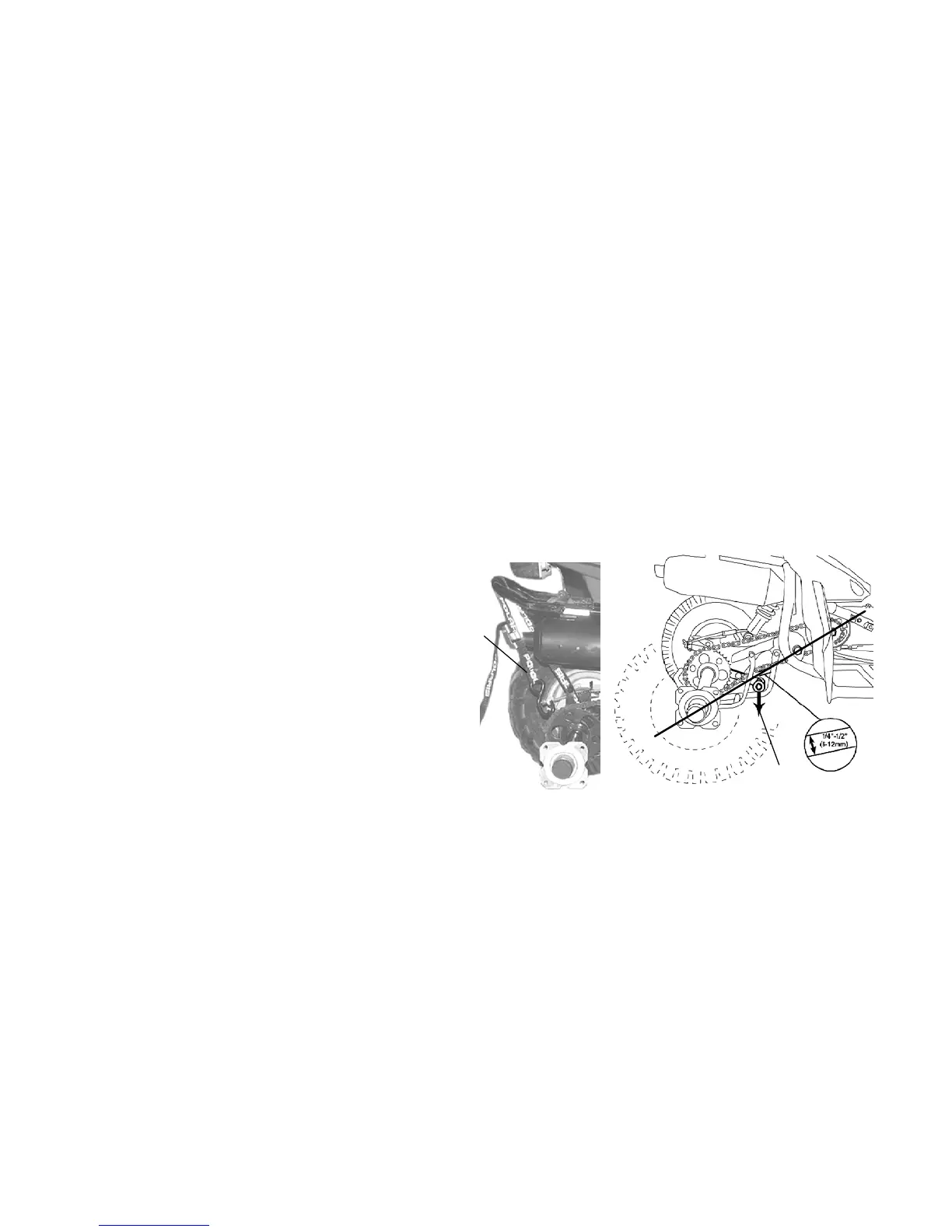

2. Collapse the suspension with an adjustable (buckle t ype) trailer tie down. Fasten the
strap (A) around the axle and rear bumper tube.
3. Tighten the strap until a straight
line (B) can be drawn from the rear
axle to the gearcase output shaft
intersecting the swing arm pivot.
This establishes the tightest chain
position.
4. Pull down on the chain tensioner (C)
to move it out of the way, then
measure chain slack. It should have
1/4”-1/2” (6-12 mm) deflection.
5. If the chain needs adjustment, use the
procedure on page 158.
A
B
C
