BELT REMOVAL
If a belt fails, always clean any debris from the clutch air duct and from the clutch
and engine compartments when replacing the belt.
WARNING
Failure to remove ALL debris when replacing the belt could result in vehicle
damage, loss of control and severe injury or death.
NOTE
Inspect the entire clutch outlet duct (including the outlet duct screen) when
replacing a drive belt. Remove any debris found in the outlet duct or outlet duct
screen.
To remove the belt, do the following:

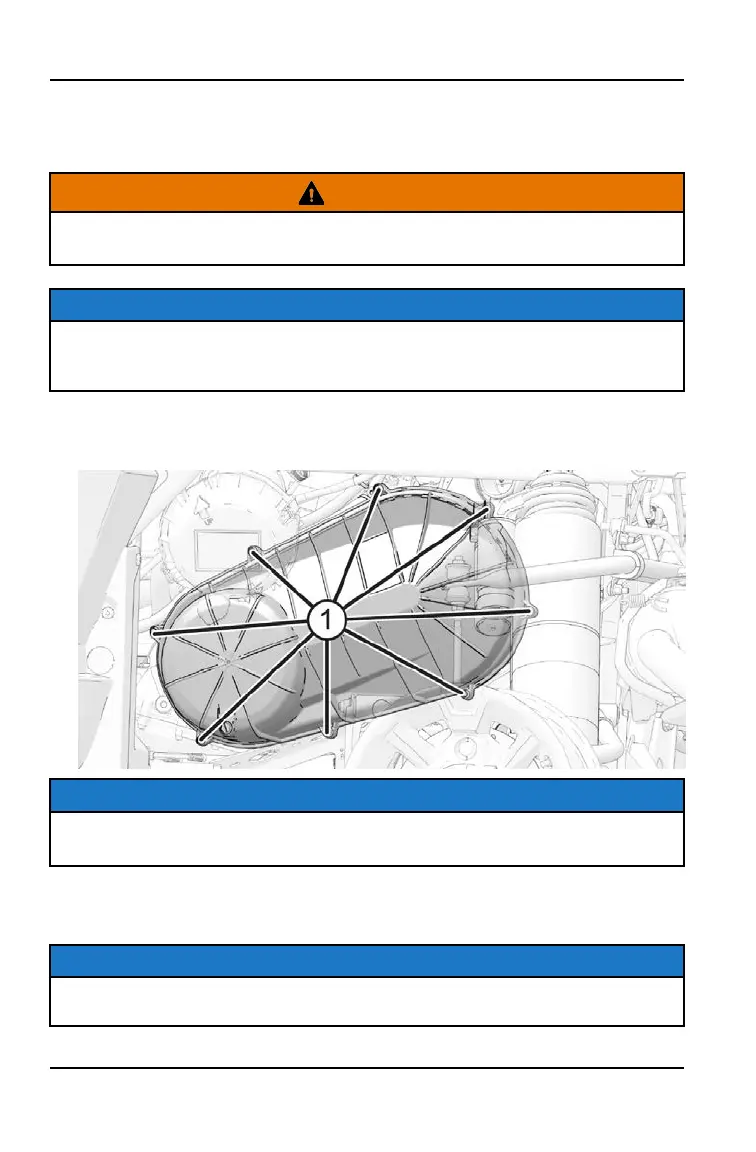

1. Remove the nine fasteners
q
that retain the outer clutch cover.
NOTE
Removal of left rear wheel or left rear shock is NOT necessary for belt
replacement.
2. To remove the clutch cover, pull the cover (starting at the bottom), lift up over
the suspension, and then out of the vehicle.
NOTE
Use care when lifting clutch cover upwards. Do not damage cover, intake boot,
or electrical harness.
