DIAGNOSTIC CODE
NOTICE
Diagnostic Code Screen will show available MIL that has come on during that
ignition cycle.
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Diagnostic Codes” from the Options Menu by pressing the MODE
button.
Toggle the Up/Down Buttons to cycle through Code(s).
NOTICE
This option will only be available if a fault code was set or is active during the
current ignition key 'on' cycle. Turning off the ignition will clear any save fault
codes from the gauge.

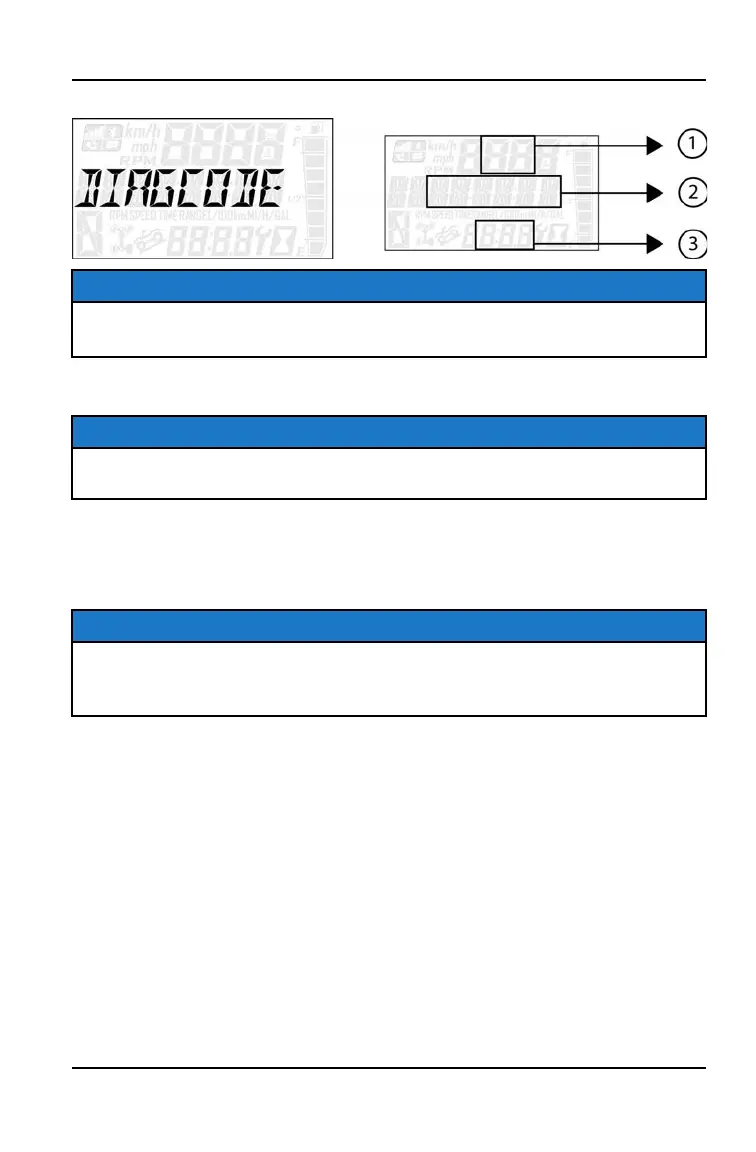

Reference the image shown above:
q
Area A will Display FMI (XX)
w
Area B will Display SPN (XXXXXX)
e
Clock Area will Display Count (XXX)
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
61
