TRANSMISSION OIL CHANGE

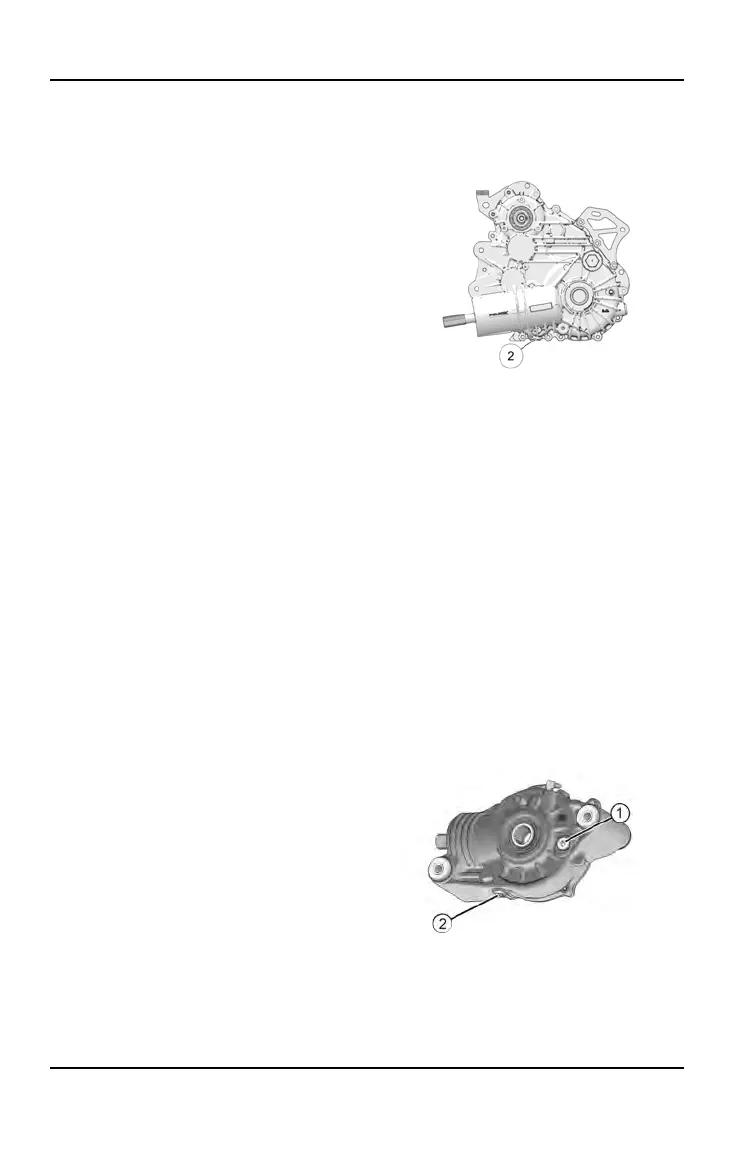

The drain plug is located on the bottom of the gearcase. Access the drain plug
through the hole in the skid plate.
1. Remove the fill plug
q
.
2. Place a drain pan under the drain
plug
w
.
3. Remove the drain plug. Allow the
fluid to drain completely.
4. Clean and reinstall the drain plug.
Torque to specification.
5. Add the recommended fluid to the
bottom of the fill plug hole. Do not
overfill.
6. Reinstall the fill plug. Torque to
specification.
7. Check for leaks. Discard used fluid
properly.
DEMAND DRIVE (FRONT GEARCASE)
DEMAND DRIVE OIL CHECK
Always check and change the demand drive fluid at the intervals outlined in the
Periodic Maintenance Chart. Maintain the oil level even with the bottom thread
of the fill plug hole. Refer to the Gearcase Specifications Chart for
recommended lubricants, capacities and torque specifications.
The front gearcase fill plug
q
is located on the right side of the front gearcase.
1. Position the vehicle on a level
surface.
2. Remove the fill plug
q
. Check the
oil level.
3. Add the recommended oil as
needed.
4. Reinstall the fill plug. Torque to
specification.
102
MAINTENANCE
