INSTRUMENT CLUSTER
OVERVIEW
NOTICE
Features and telltales vary by model.

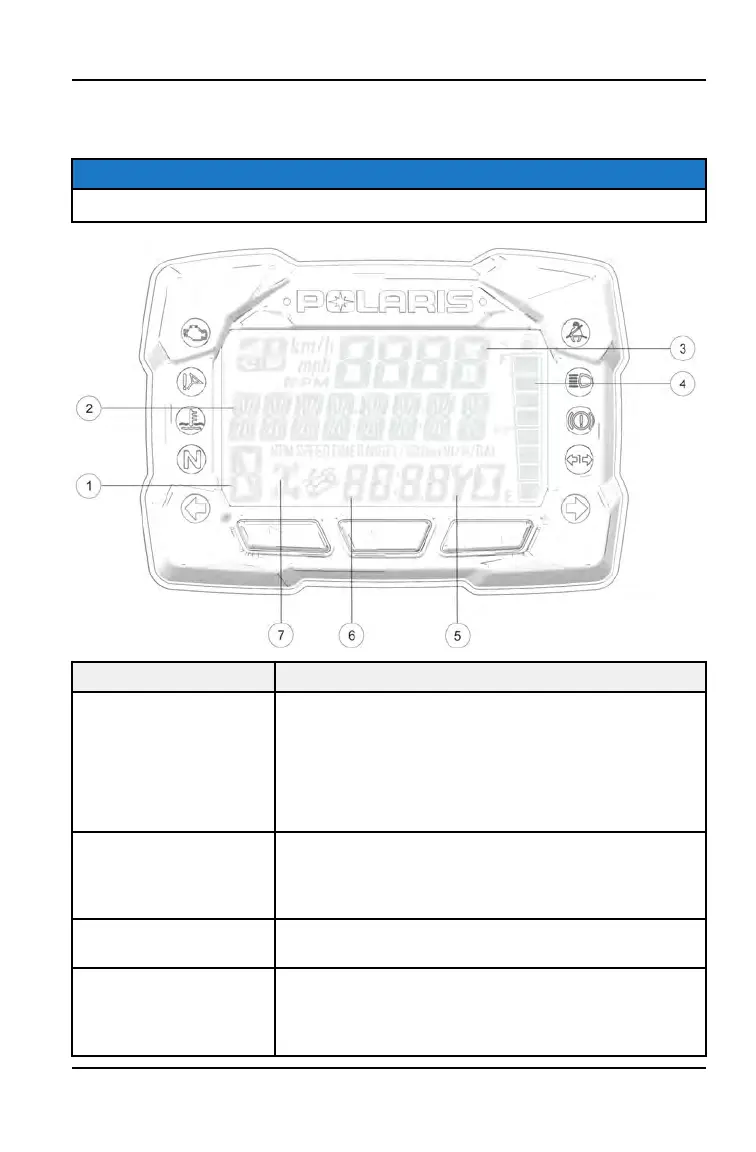

DISPLAY AREA FUNCTION
q
Gear Indicator
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
– = Gear Signal Error (or shifter between gears)
w
Display Area 2
This area displays odometer, trip meter, trip meter 2,
voltage, engine temperature, engine hour meter,
programmable service hour interval, ground speed,
or engine RPM.
e
Display Area 1
This area displays engine RPM, ground speed, or
coolant temperature.
r
Fuel Gauge
The segments of the fuel gauge show the level of
fuel in the fuel tank. When the last segment clears, a
low fuel warning is activated. All segments including
the fuel icon will flash. Refuel immediately.
59
FEATURES AND CONTROLS
To Next Page
