BELT INSTALLATION
NOTE
Be sure to install belt in the same direction as it was removed.

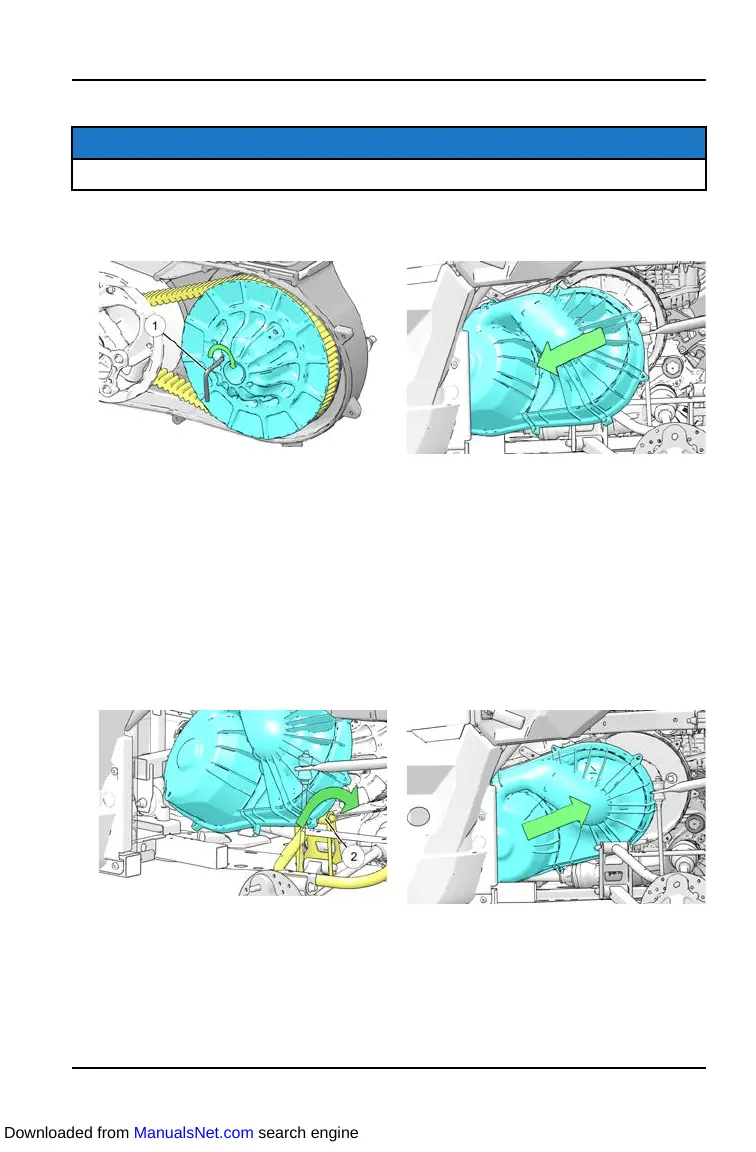

1. With the clutch spreader tool
q
installed, loop the belt over the drive clutch
and over the driven clutch.
2. Rotate the driven clutch and walk the belt into the clutch.
3. Remove the clutch spreader tool from driven clutch.
4. Rotate / spin the driven clutch and belt approximately 5-7 times to properly
seat the belt in the driven clutch.
5. Install the clutch cover into wheel well as shown above.
6.
Rotate clutch cover over A-Arm
w
as shown below. Use care not to damage
intake boots or electrical harness.
7. Pull clutch cover backwards and align with bolt holes on inner clutch cover as
shown below.
