MAINTENANCE
Gearcases
Transmission (Main Gearcase)
Oil Change

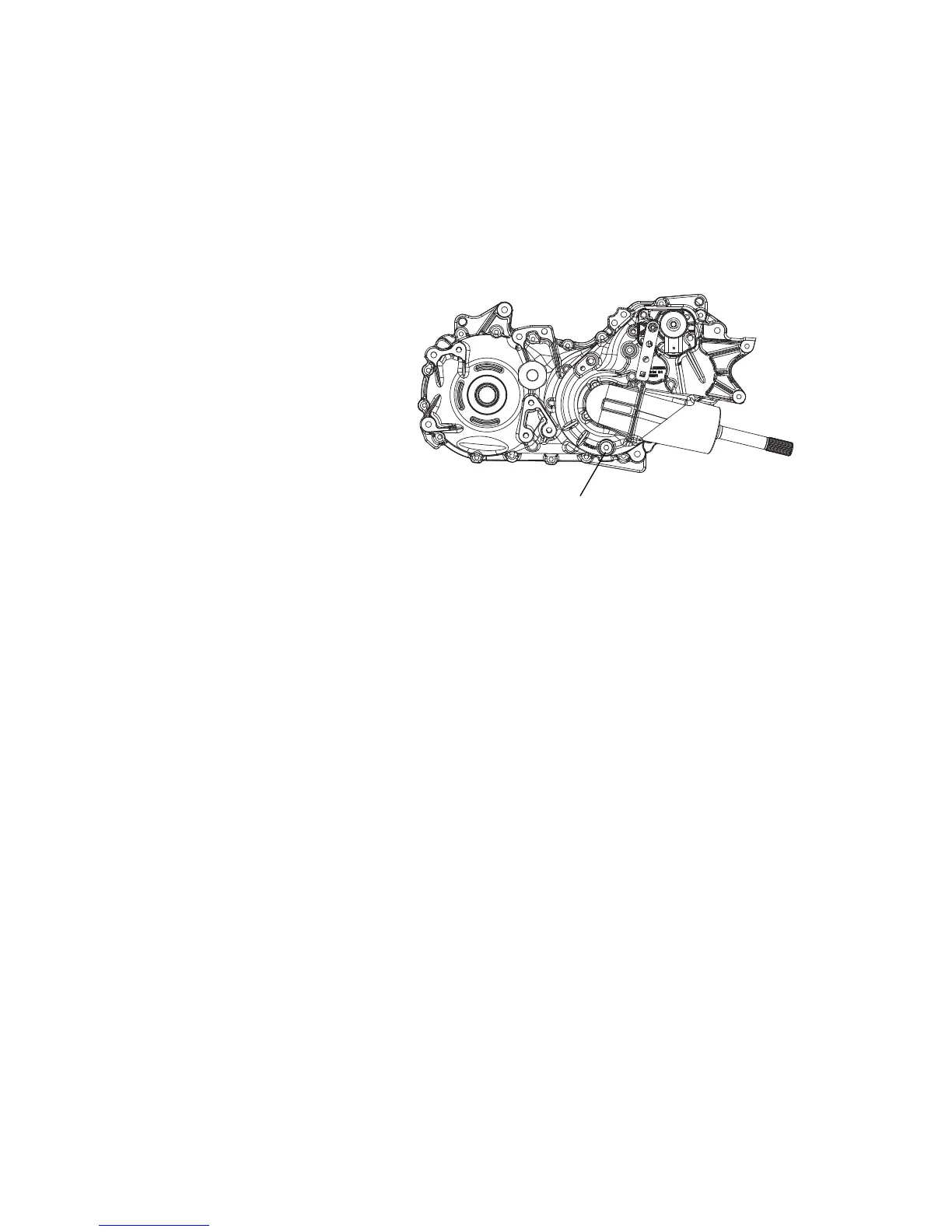

The drain plug is located on the bottom of the transmission. Access the
drain plug through the drain hole in the skid plate. Refer to the Gearcase
Specifications Chart on page 59 for recommended lubricants, capacities
and torque specifications.
1. Remove the fill
plug.
2. Place a drain pan
under the drain
plug.
3. Remove the drain
plug. Drain the oil.
4. Wipe the magnetic
end of the drain
plug clean to
remove accumu-
lated metallic filings.
5. After the oil has drained completely, install a new sealing washer.
6. Reinstall the drain plug. Torque to specification.
7. Add the recommended oil as needed. Do not overfill.
8. Reinstall the fill plug. Torque to specification.
9. Check for leaks.
10. Dispose of used oil properly.
