MAINTENANCE
Tires
Wheel Removal
1. Position the vehicle on a level surface.
2. Place the transmission in PARK. Stop the engine.
3. Loosen the wheel nuts slightly.
4. Elevate the side of the vehicle by placing a suitable stand under the
frame.
5. Remove the wheel nuts and washers. Remove the wheel.

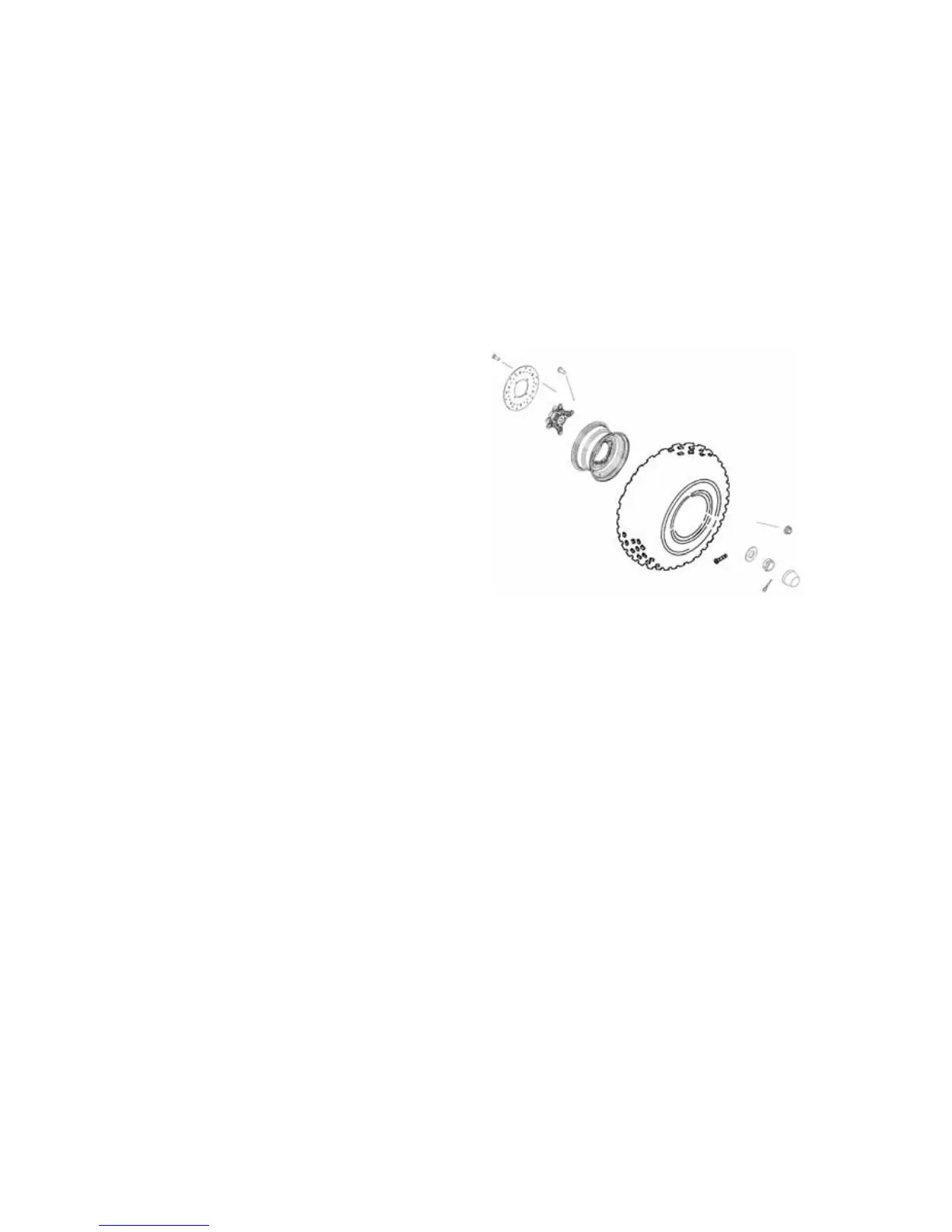

Wheel Installation
1. Place the transmission in
PARK.
2. Place the wheel in the
correct position on the
wheel hub. Be sure the
valve stem is toward the
outside and rotation
arrows on the tire point
toward forward rotation.
WARNING! Improperly installed wheels can adversely affect tire wear and
vehicle handling, which can result in serious injury or death. Always ensure that
all nuts are torqued to specification. Do not service axle nuts that have a cotter
pin installed. See your POLARIS dealer.
3. Attach the wheel nuts and washers and finger tighten.
4. Carefully lower the vehicle to the ground.
5. Torque the wheel nuts to specification. See page 105.
