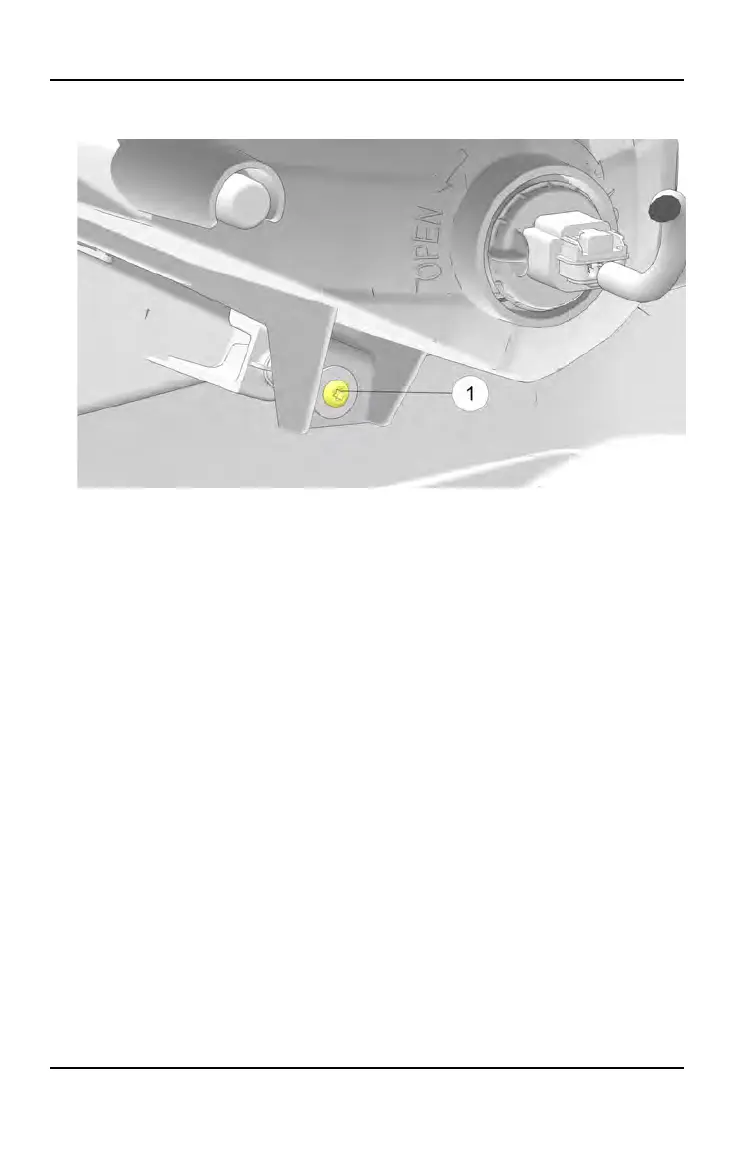

5. If a headlight needs adjustment, locate the adjustment screw
q
at the rear of
the headlight.
6. Tighten the screw to adjust the lamp up. Loosen the screw to adjust the lamp
down.
7. Repeat steps 4-6 until the lamp is properly adjusted.
BRAKE LIGHTS
When the brake pedal is depressed, the brake light comes on. Check the brake
light before each ride.
To check the brake lights, do the following:
1. Turn the key to the ON position.
2. Depress the brake pedal. The brake light should come on after about 0.4 in
(10 mm) of pedal travel. If the light doesn't come on, check the bulb.
138
MAINTENANCE
