HEADLIGHT BEAM ADJUSTMENT

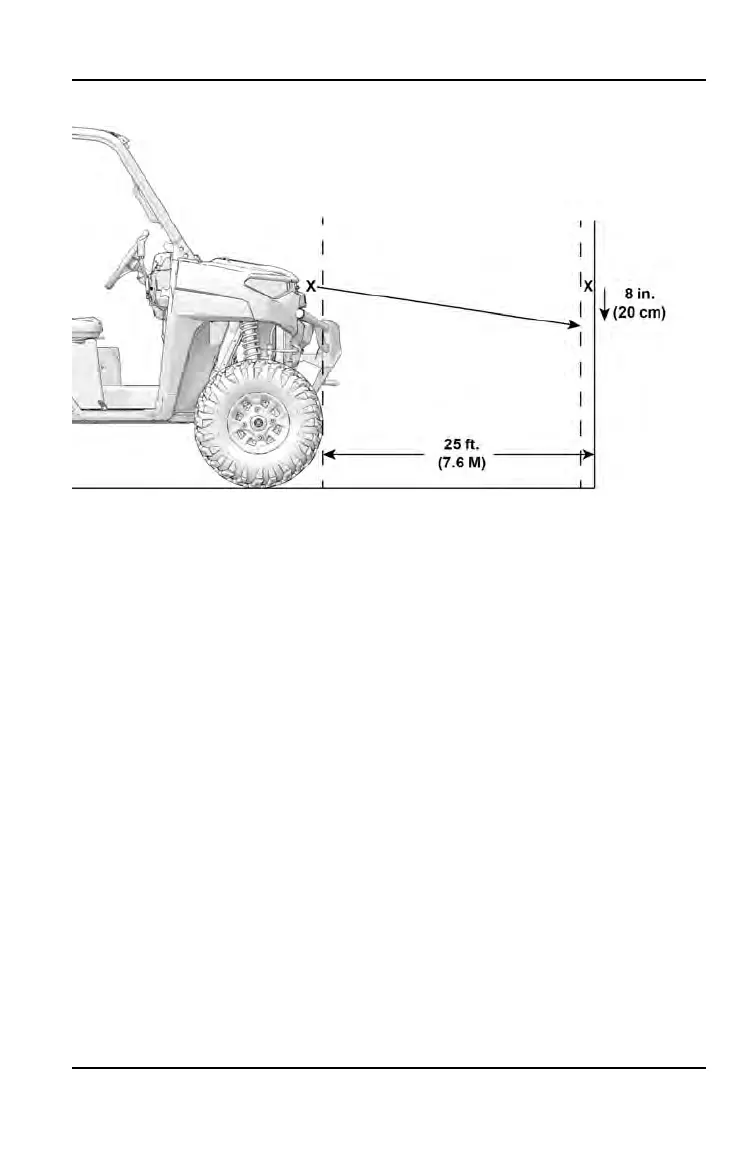

To adjust the headlight beam, do the following:
1. Ensure the tire pressure of all tires is at recommended levels.
2. Place the vehicle on a level surface with the headlight approximately 25 ft.
(7.6 m) from a dark wall.
3. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
4. Apply the brakes. Start the engine. Turn on the low-beam headlights.
5. Observe the headlight aim. The most intense part of the headlight beam
should be aimed 8" (20 cm) below the mark placed on the wall. Include the
weight of a rider on the seat while performing this step.
6. If a headlight needs adjustment, locate the three adjustment screws at the
back of each headlight (one on top, two on the bottom).
7. Rotate the adjustment screw to adjust the headlight as needed.
145
