6. After assembly, be sure the starter gear rotates in the
clockwise direction only.

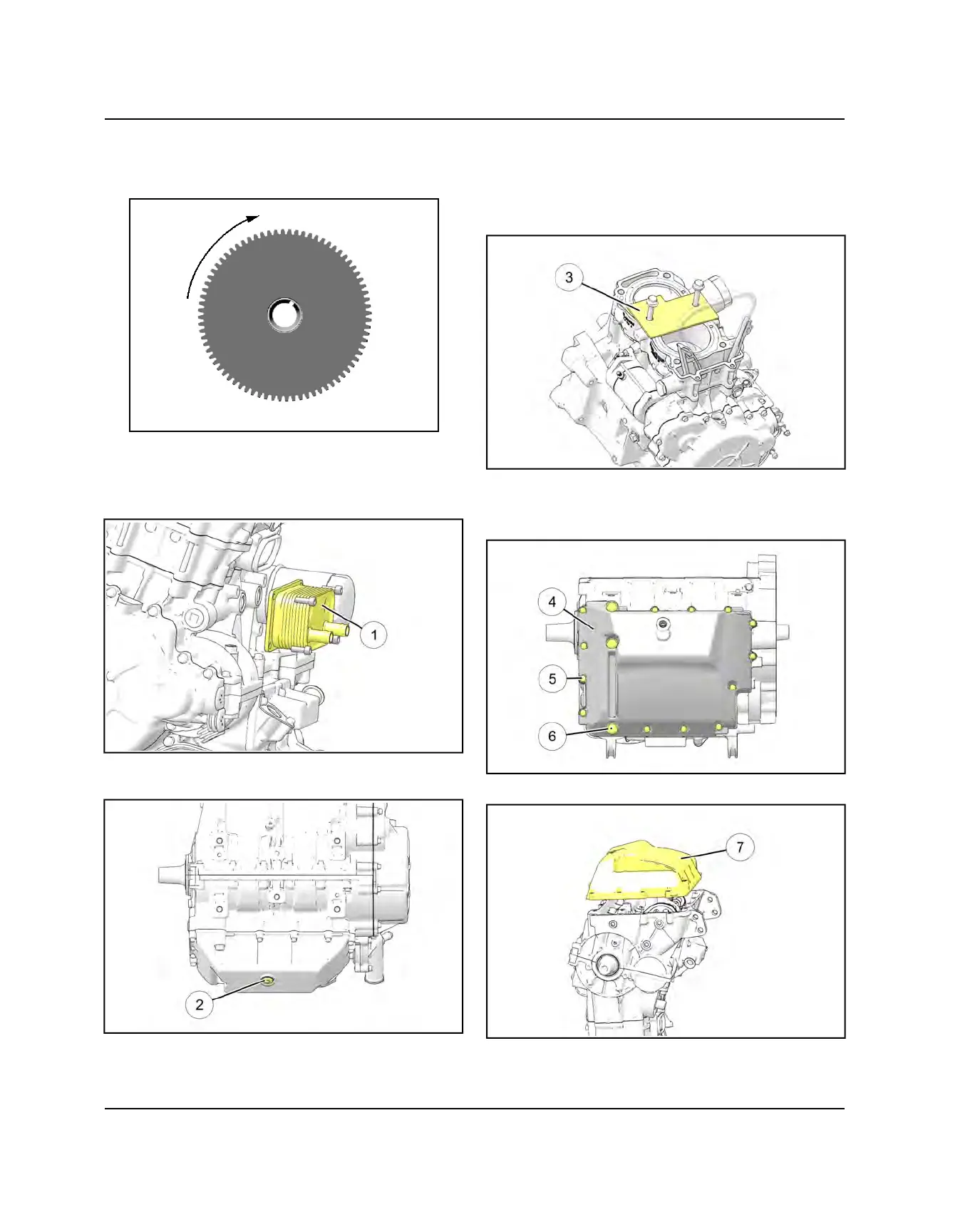

CRANKCASE DISASSEMBLY
1. Remove the oil cooler
q
from the crankcase.
2. Remove the crankcase drain plug
w
to drain any oil
remaining in the engine.
3. Remove the oil filter.
4. Install the Cylinder Holding & Camshaft Timing Plate
e
(PU-50563) onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6
t
and three M8
y
bolts
retaining the sump cover
r
to the crankcase.
7. Remove the sump cover
u
from the crankcase.
