3.62

9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual

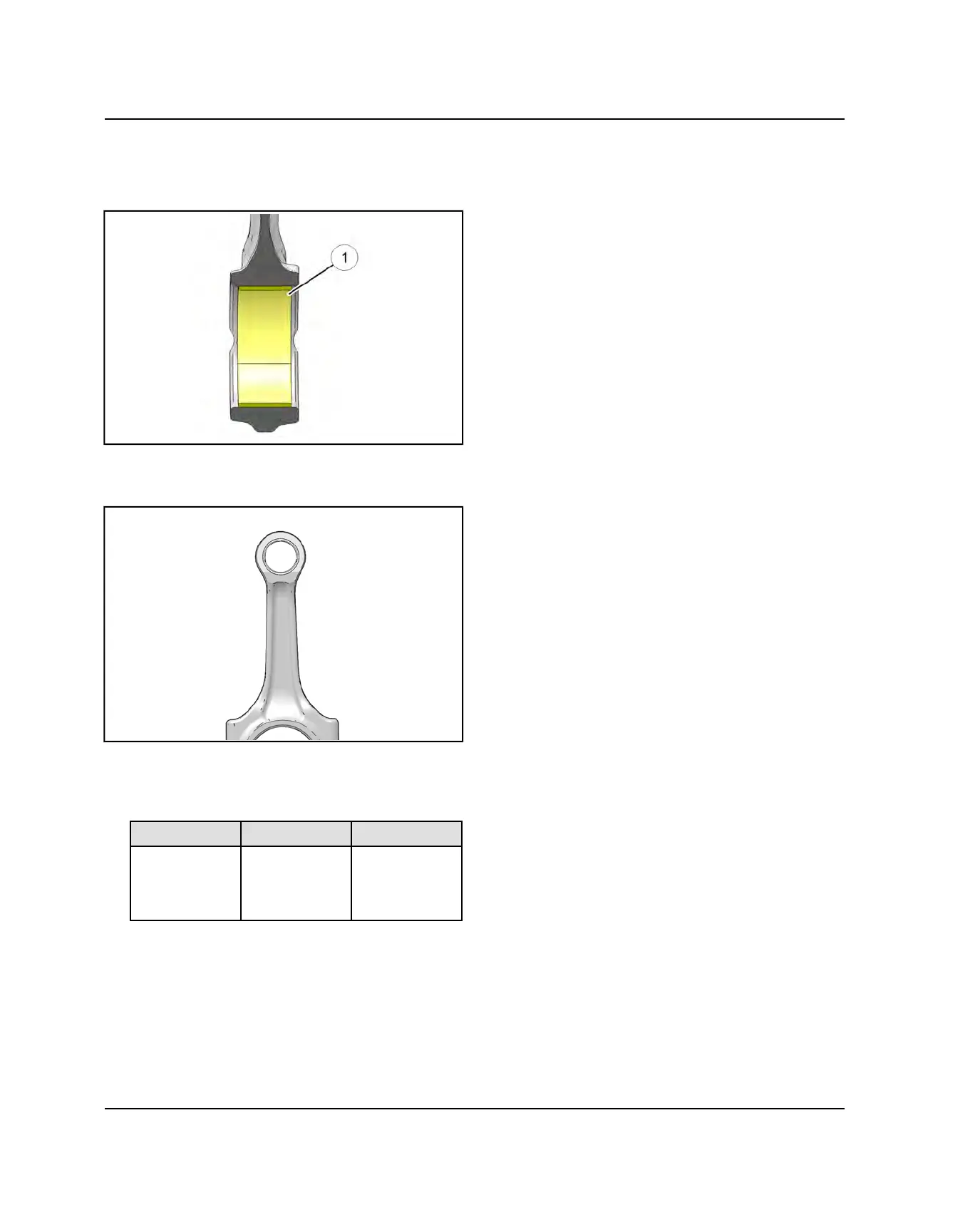

5. Using a dial bore gauge, measure big end I.D. in two

directions shown. Remove bearings when taking

measurements

. Record measurements and

compare to specifications.

6. Refer to the number printed onto the side of the

connecting rod, between the small and large bore

ends. This number represents the bore diameter.

7. The table below lists the big end bore diameter

specifications.

Connecting Rod Big End Bore Diameters

1 2 3

1.7318-

1.7321″

(43.989-

43.996 mm)

1.7321-

1.7323″

(43.996-

44.003 mm)

1.7323-

1.7326″

(44.003-

44.010 mm)

8. Whether using new connecting rods or re-installing

the original ones, refer to the bearing selection chart

provided in the “Connecting Rod Bearing Selection”

procedure in this chapter.

ENGINE
