70
MAINTENANCE
Throttle System
Throttle Freeplay Adjustment

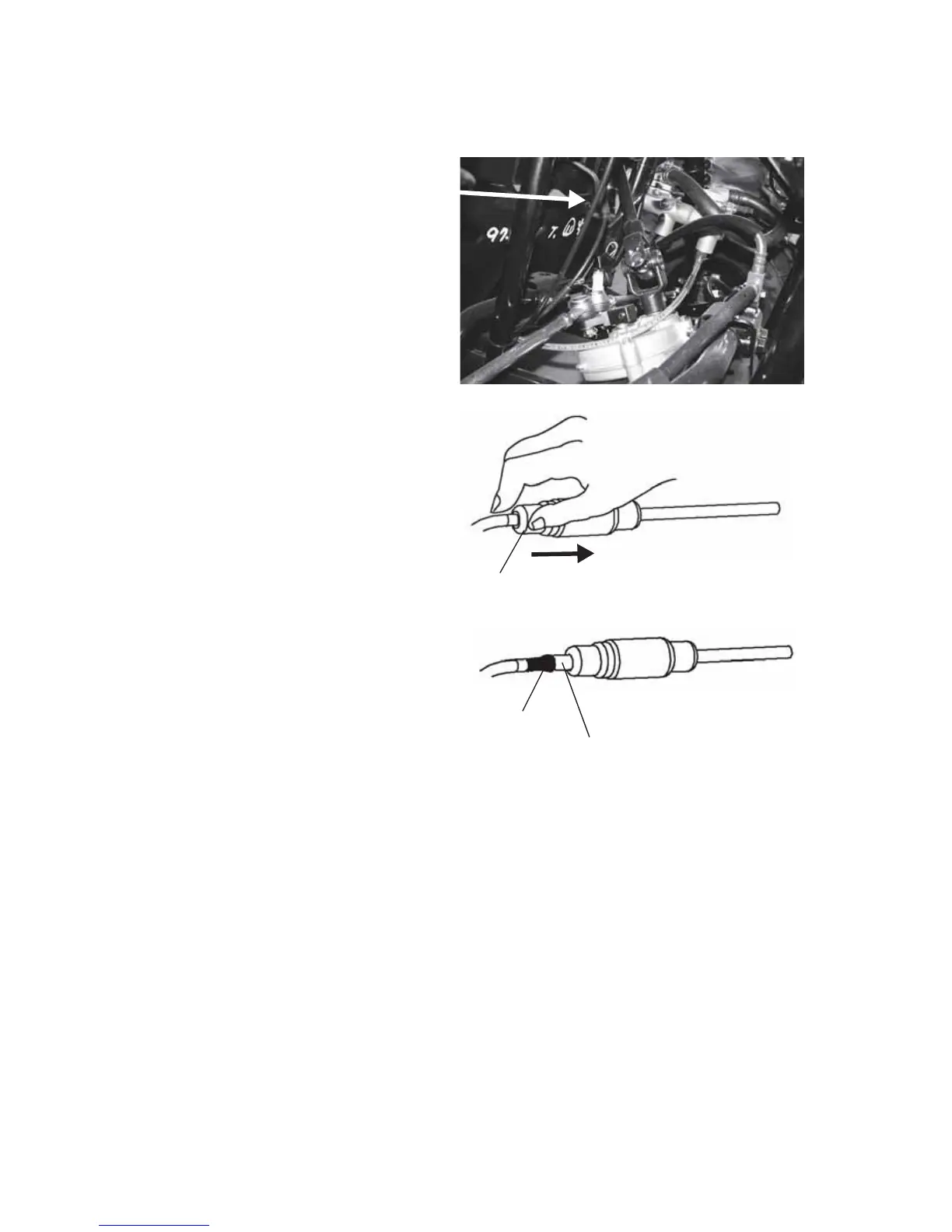

Access the throttle cable
adjuster through the right front
wheel well.
1. Slide the cable adjuster
boot off the cable adjuster.
2. Squeeze the end of the
rubber boot and slide it far
enough to expose the end
of the inline cable adjuster.
3. Loosen the adjuster lock
nut.
4. Move the cable adjuster
until 1/16" to 1/8" (1.5-3
mm) of freeplay is
achieved at the throttle
pedal. See page 69. While
adjusting, lightly flip the
throttle pedal up and down.
5. Tighten the lock nut.
6. Apply a small amount of
grease to the inside of the
boot and slide it over the
cable adjuster to its
original position.
Lock Nut
Adjuster
Boot
To Next Page
