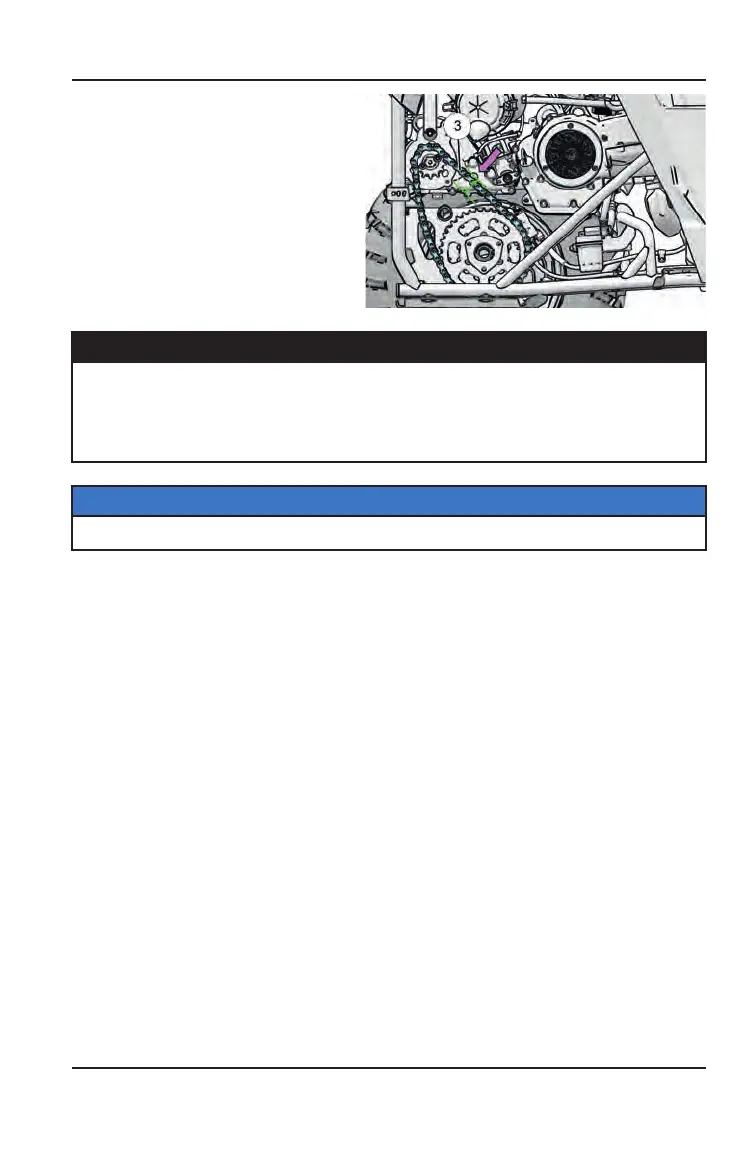

4. Repeat these steps until chain
is adjusted to desired
deflection.
MEASUREMENT
Chain Deflection:
Using 22 lbs (100N) of force
New Chain: 3/16 - 13/32” (5 - 10 mm)
Broken In Chain: 13/32 - 19/32” (10 - 15 mm)
NOTICE
A new chain will stretch after the vehicle is used for a period of time.
PARKING BRAKE
PARKING BRAKE CABLE FREEPLAY
ADJUSTMENT
1. Inspect and perform any needed service on the brake pads before adjusting
parking brake cable freeplay.
2. Make sure the parking brake is NOT set (the lever should be in the DOWN
position).
3. Pull the brake cable back to inspect freeplay between the cable end and the
caliper bracket. Freeplay should be 1/16" - 1/8" (1.5-3 mm).
4. To adjust freeplay, loosen the jam nut. Turn the in-line adjuster nut outward to
decrease freeplay. Turn the adjuster nut inward to increase freeplay.
5. Tighten the jam nut against the adjuster nut.
99
MAINTENANCE
