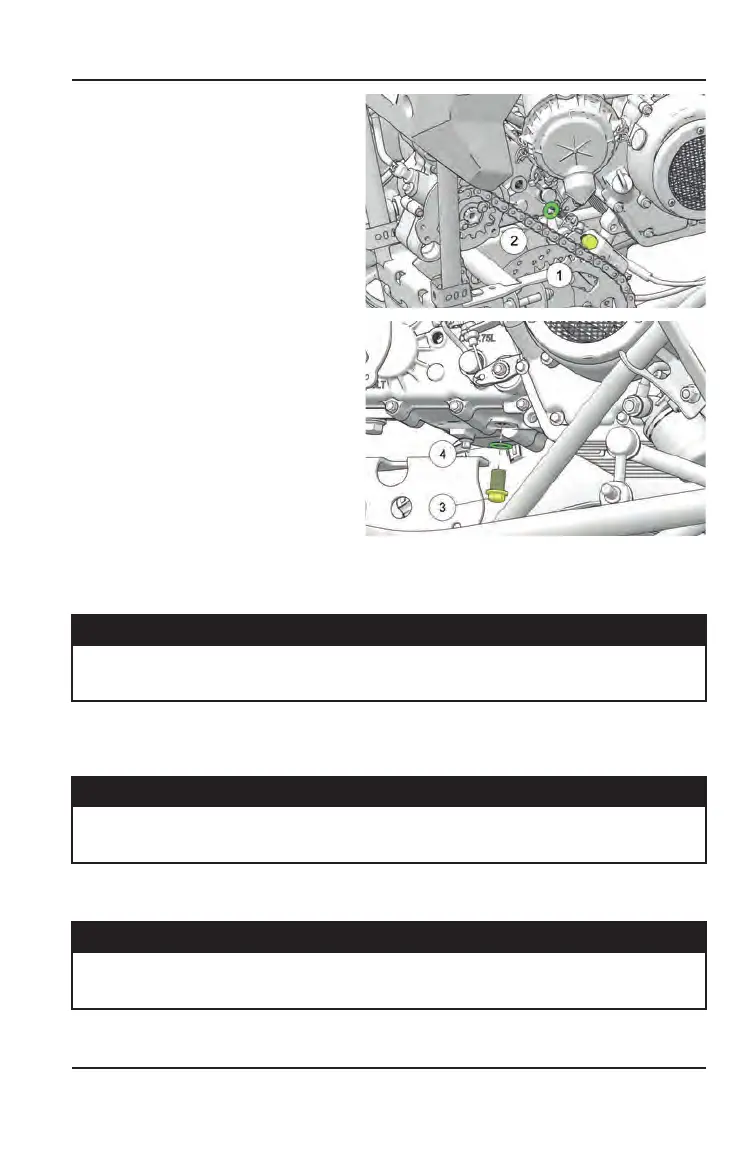

The fill plug
q
can be accessed
on the right side of the
transmission gearcase. The drain
plug
e
is located on the bottom of
the transmission gearcase.
Access the drain plug from the
bottom of the vehicle.
To change the transmission fluid,
do the following:
1. Remove the fill plug
q
and
sealing washer
w
.
2. Place a drain pan under the
transmission drain plug.
3. Remove drain plug
e
and
sealing washer
r
from the
bottom of the gearcase and
allow lubricant to drain
completely.
4. Clean the drain plug magnetic
surface.
5. Reinstall the drain plug and sealing washer. Torque to specification.
TORQUE
Transmission Drain Plug:
18 ft-lbs (25 N·m)
6. Add the recommended amount of lubricant or fill-to-spill through the fill plug
hole.
FLUID CAPACITY
Transmission Lubricant Capacity:
25 oz (750 mL)
7. Reinstall the fill plug and washer. Torque to specification.
TORQUE
Transmission Fill Plug:
18 ft-lbs (25 N·m)
8. Check for leaks. Dispose of used lubricant properly.
