Polaris RZR 570 2014 - Intake; Exhaust System; Air Box; Air Filter Exploded View

3
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
3.15
INTAKE / EXHAUST SYSTEM

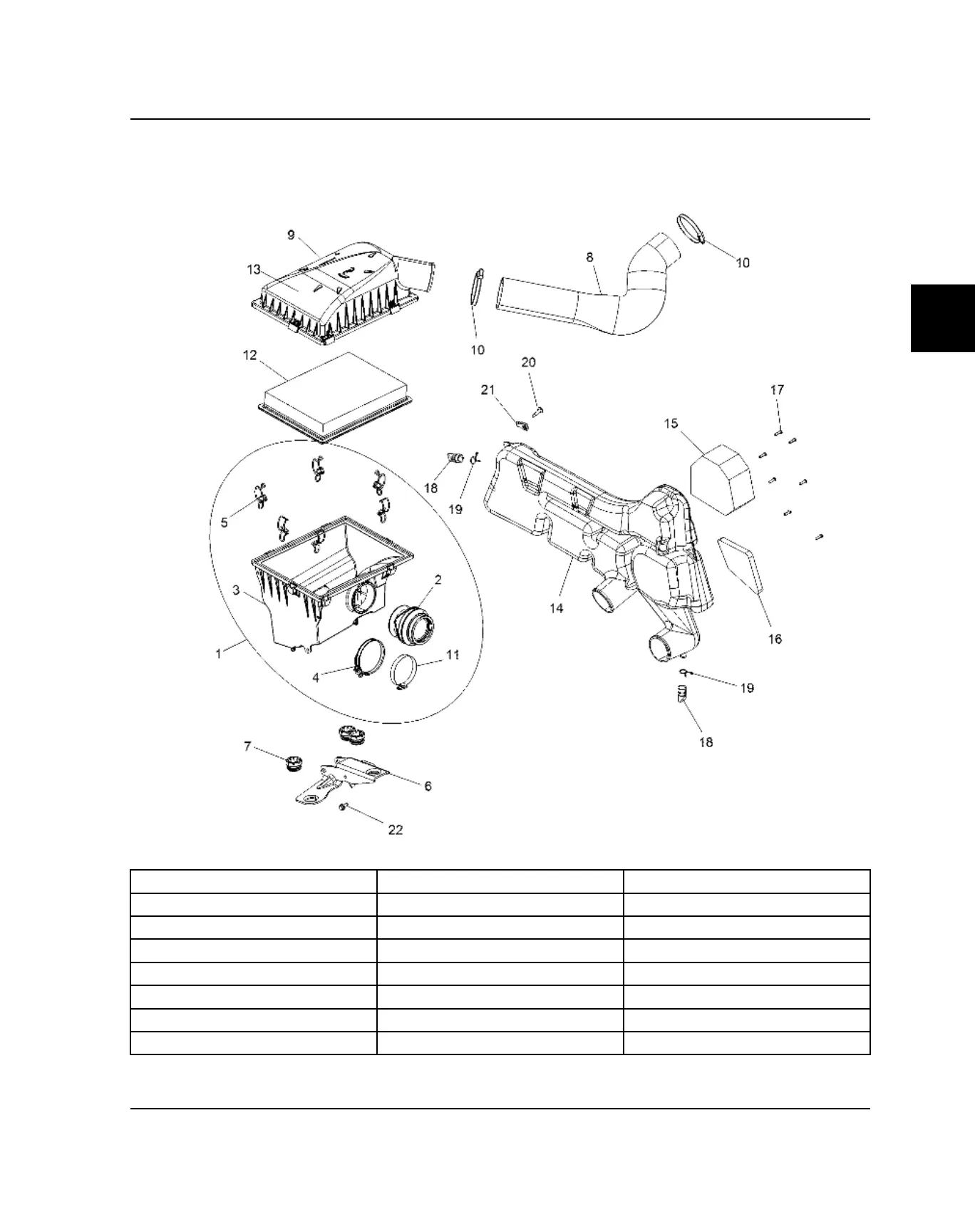

AIR BOX / AIR FILTER EXPLODED VIEW
q
ASM., AIRBOX, MAIN
o
LID, AIRBOX
k
SCREW
w
BOOT, AIRBOX
a
CLAMP, NARROW BAND
l
CAP, DRAIN
e
BASE, AIRBOX
s
CLAMP, HOSE
1(
CLAMP, HOSE
r
CLAMP, AIRBOX
d
FILTER, AIRBOX, MAIN
2)
SCREW
t
CLIP, AIRBOX
f
DECAL, FILTER MAINTENANCE
2!
NUT, U
y
BRACKET, MOUNT, BLACK
g
BOX, INTAKE
2@
SCREW
u
GROMMET
h
FILTER, ENGINE IN
i
HOSE, INTAKE
j
FILTER, CLUTCH IN
