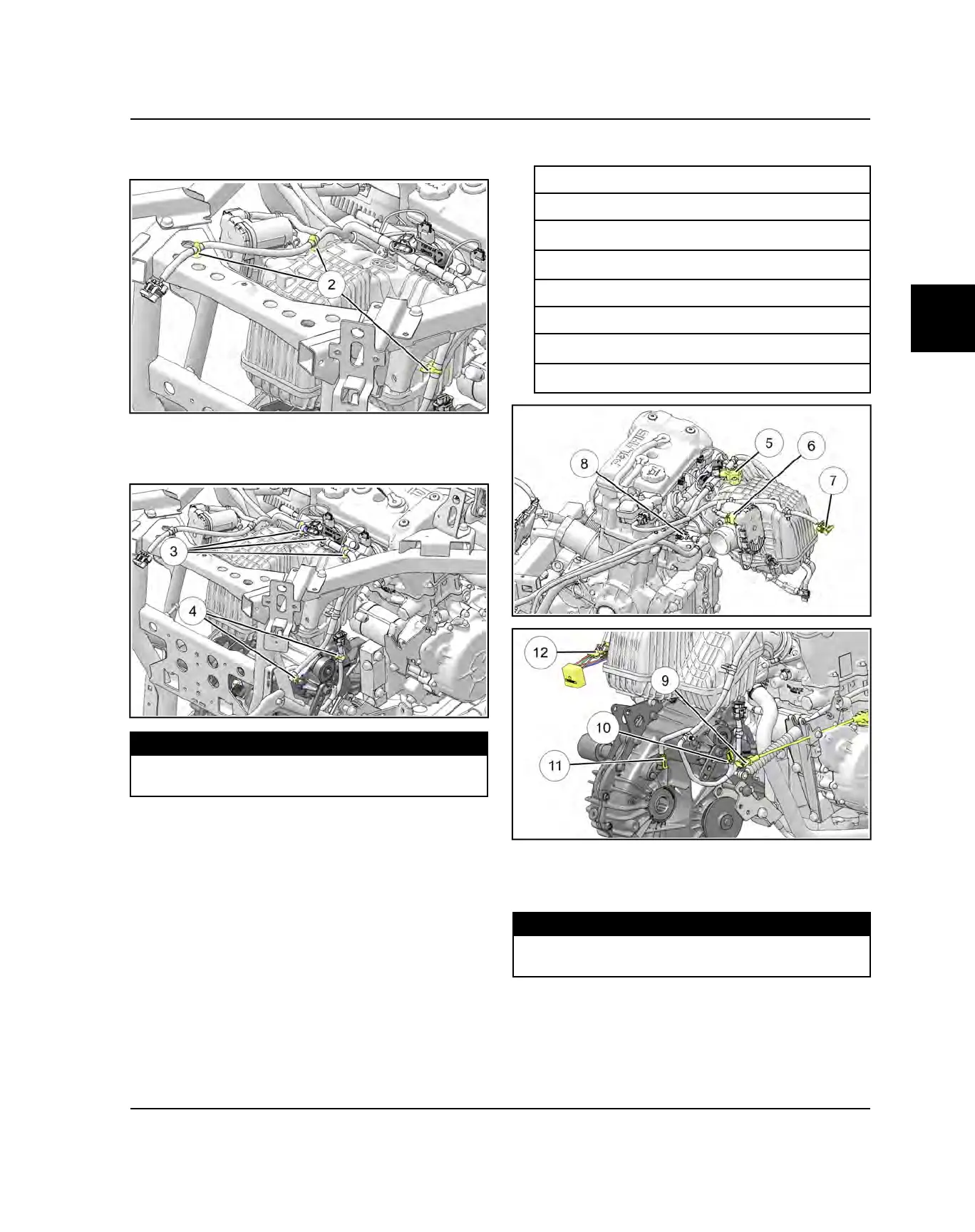

13.Route the harness and install the three harness
clamps on the intake manifold
w
.
14.Install the three fasteners retaining the harness to the
intake manifold
e
and two fasteners retaining the
harness by the transmission
r
switch.
TORQUE
Harness Mounting Bracket Screws:
35 in-lb (4 Nm)
15.Connect the following electrical components:
t
TMAP
y
Electronic Throttle Control
u
Taillight Harness
i
Engine Temp Sensor
o
CPS
a
Transmission Switch
s
Speed Sensor
d
Differential Relay (if equipped)
16.Install the ignition coil. Connect the wiring leads and
spark plug caps. Torque mounting bolts to
specification.
TORQUE
Ignition Coil Mounting Bolts:
75 in-lb (9 Nm)
