TRANSMISSION MOUNTING VIEW
q

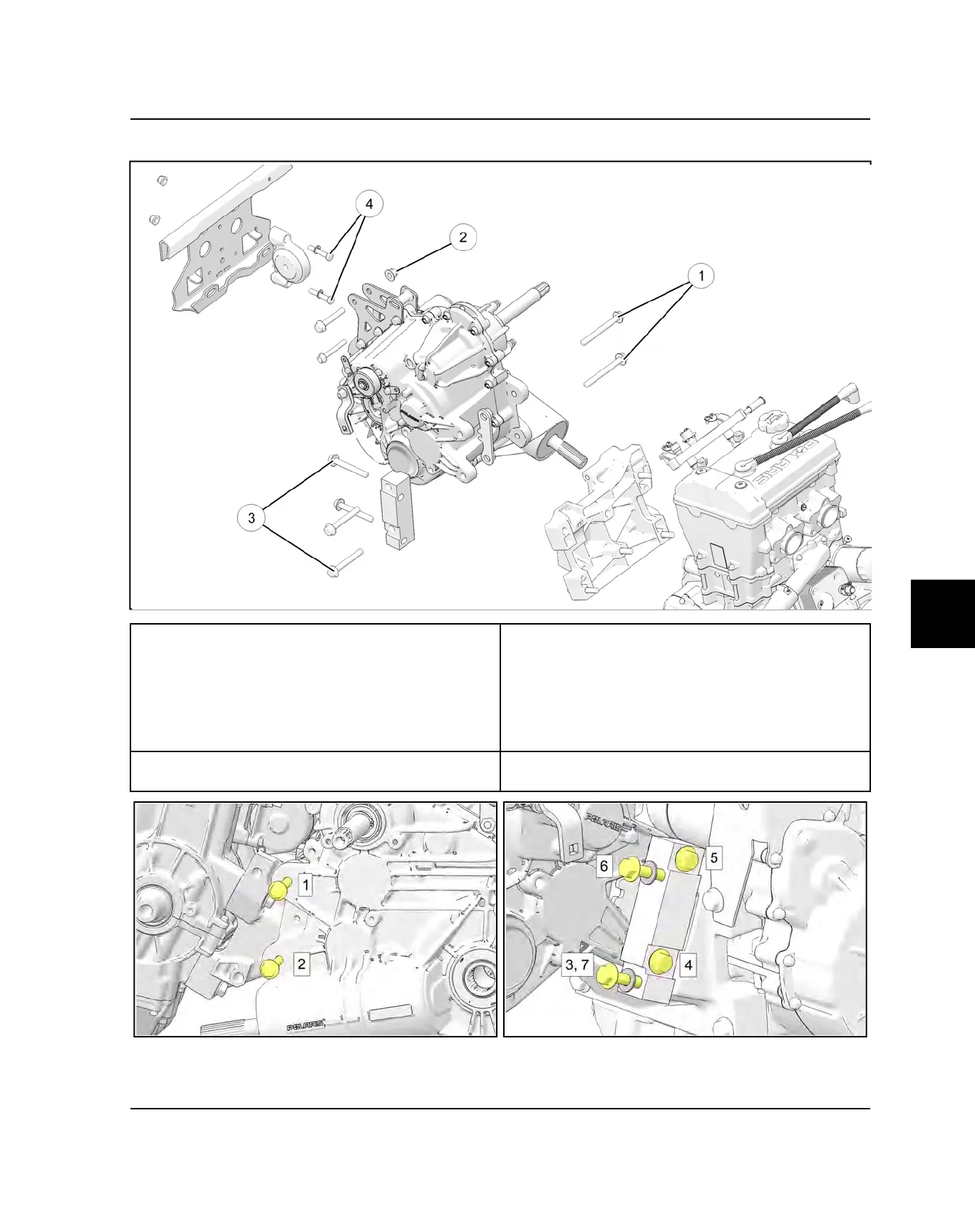

Engine to Trans Bolts
Step 1-2: 64 ft-lb (87 Nm)
Step 3: 5 ft-lb (7 Nm)
Step 4-7: 44 ft-lb (60 Nm)
*See sequence in illustrations below
e
Transmission Bracket Bolts
Step 1-2: 64 ft-lb (87 Nm)
Step 3: 5 ft-lb (7 Nm)
Step 4-7: 44 ft-lb (60 Nm)
*See sequence in illustrations below
w
Transmission Isolator Fasteners
33 ft-lb (45 Nm)
r
Transmission Mount Bracket Fasteners
22 ft-lb (30 Nm)
TRANSMISSION
