ENGINE
2.5

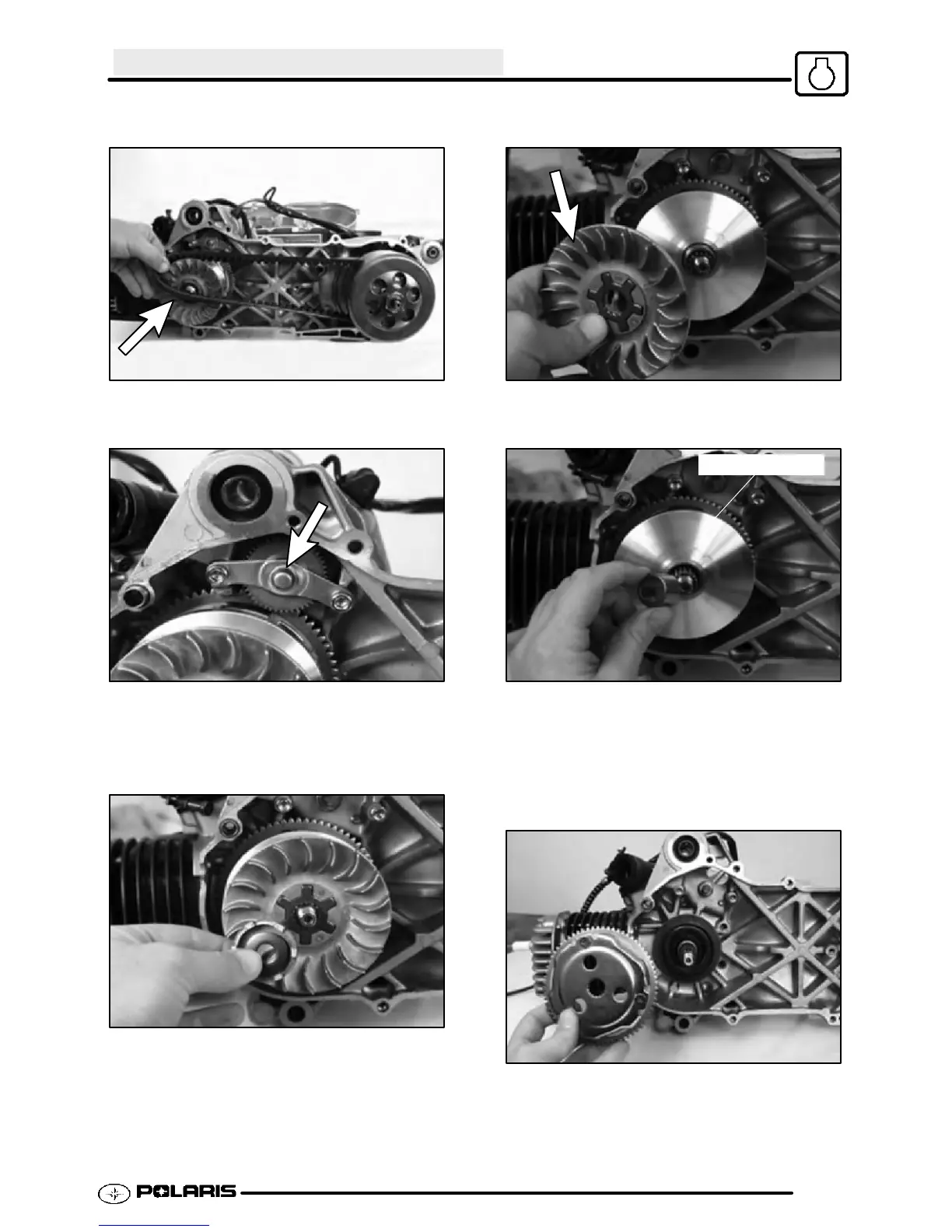

3. Remove the drive belt.
4. Remove the idle gear plate, two washers, and idle
gear from the pin shaft.
NOTE: There is one washer on the inside of the idle
gear and one washer on the outside of the idle gear.
5. Removethenylon lock nut, the cone spring washer,
and the one way clutch from the crankshaft.
6. Removetheprimary fixedsheaveand washerclaw.
7. Remove the bushing, the primary sliding sheave,
and the cam plate assembly.
Primary Sheave
NOTE: When removing the primary sliding sheave
and the cam plate assembly, use two hands to hold
the cam plate andtheprimary sliding sheave together.
This prevents the roller weights from falling out of the
assembly.
8. Carefully remove the starter one--way assembly.
