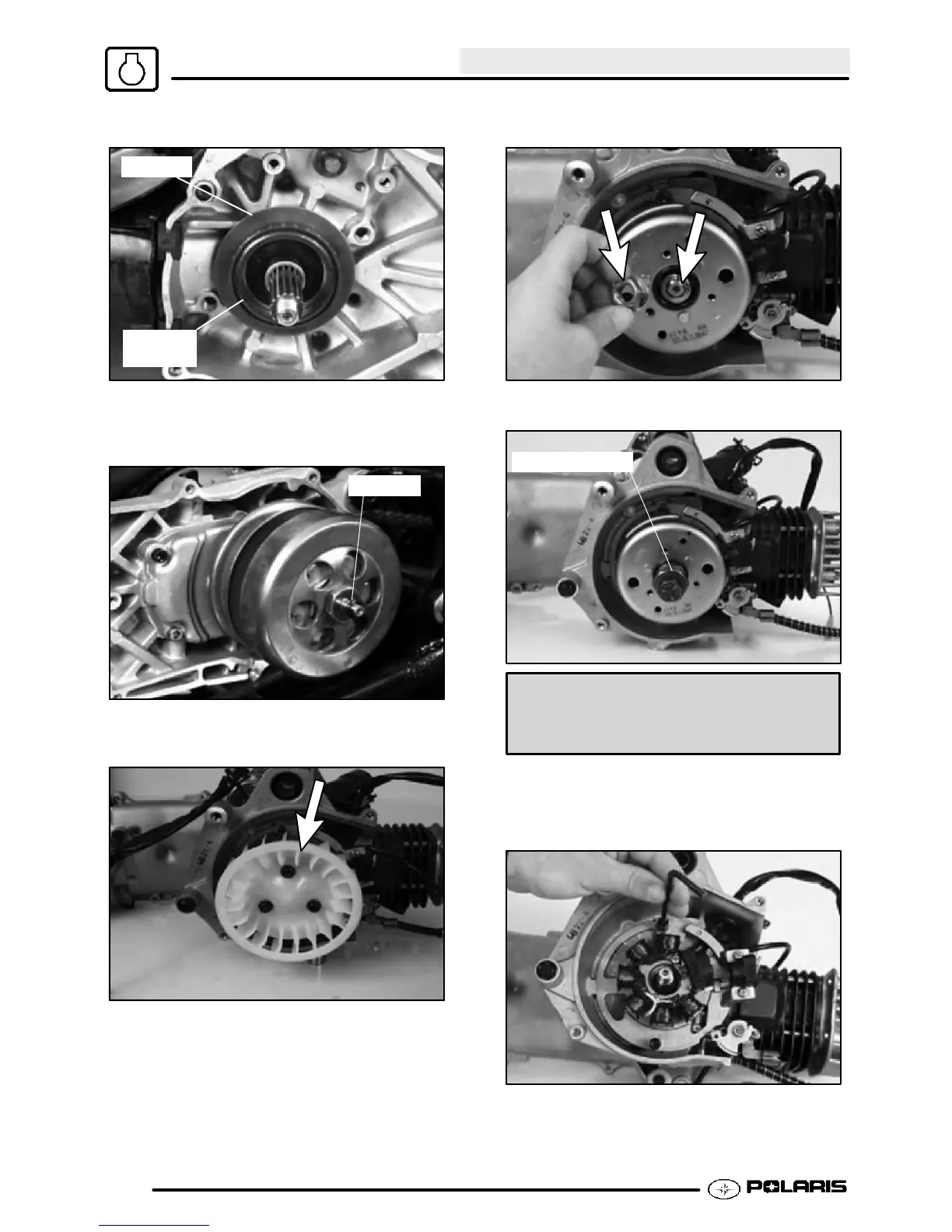

9. Remove the washer and needle bearing.
Washer
Needle
Bearing
10. Remove the driven clutch assembly by removing
the O--ring and nut from the shaft. . Replace the
O--ring as needed.
O--Ring
11. Remove the three phillips screws holding the fan
in place. Remove the fan.
12. Remove the spring washer and nut from the shaft.
13. Remove the flywheel using flywheel puller.
Flywheel Puller
Flywheel Puller
( PA--45153)
14. Scribe an alignment mark on the stator backing
plate and the crankcase for proper alignment
uponengine assembly. Removestator assembly.
