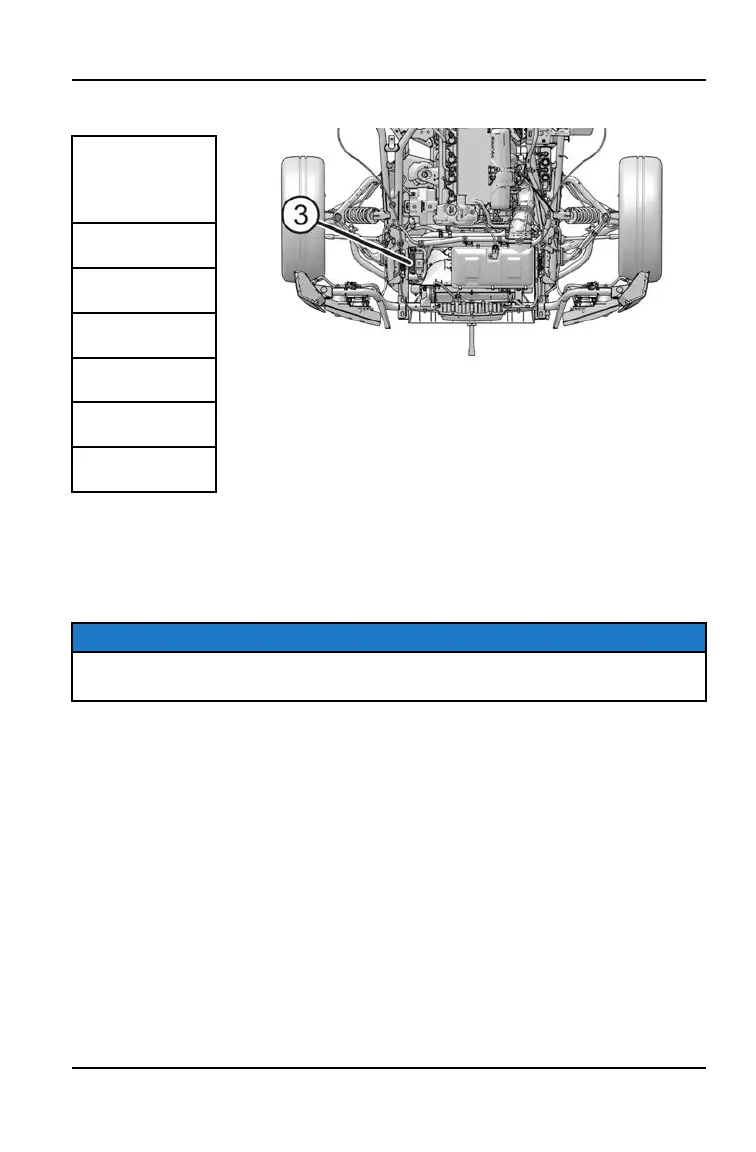

The second fuse box
e
is located closer to the front.
(Canadian
Models Only)
Chassis-3
40A
Chassis-2
40A
VCM
20A
PEPS
40A
Engine
40A
ABS
50A
Chassis-1
40A
1. Open the hood.
2. Lift the yellow locking tabs, then squeeze the fuse box cover tabs inward and
remove the cover.
3. Use the fuse puller provided in the tool kit to remove the spent fuse.
NOTICE
Always use the recommended fuse to prevent electrical system damage. Refer
to the label on the fuse box cover.
4. Install the new fuse.
5. Reinstall the fuse box cover.
