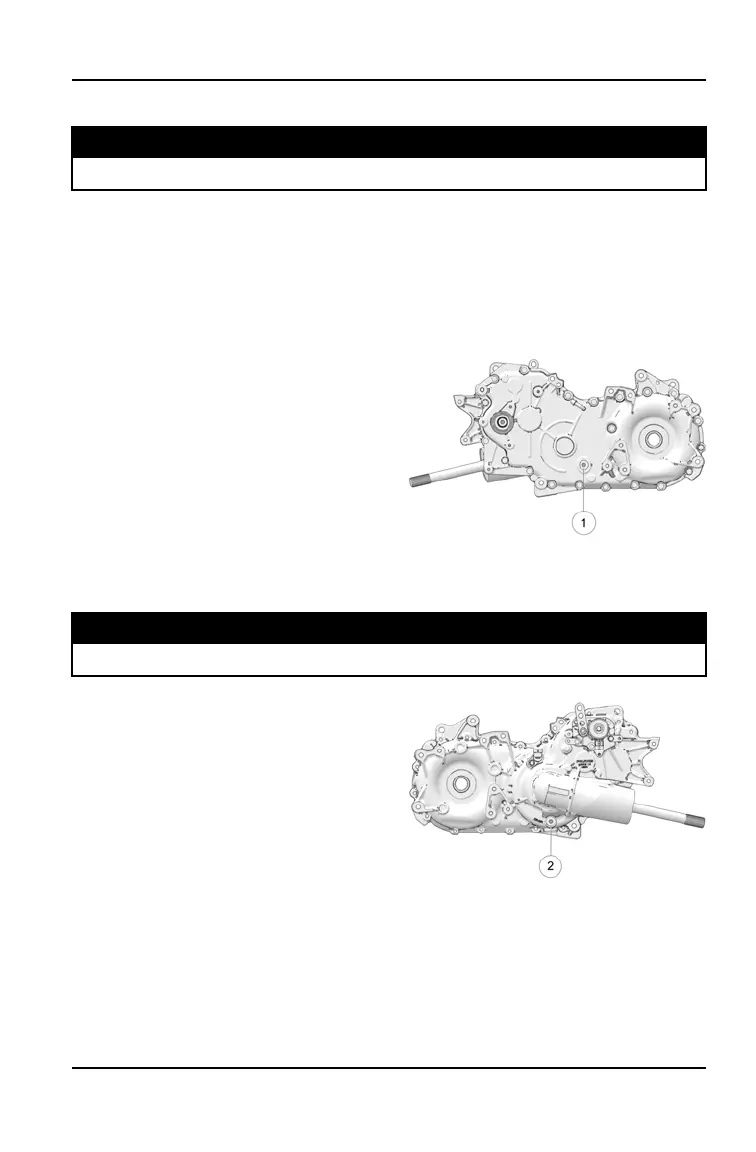

TRANSMISSION OIL
TORQUE
Fill Plug: 20–25 ft lbs. (27–34 Nm)
Always check and change the transmission oil at the intervals outlined in the
Periodic Maintenance Chart. See the Fluid Recommendation table for capacities
and plug torques. Maintain the oil level at the bottom of the fill plug hole. The fill
plug is located on the right side of the ATV behind the footwell. The drain plug is
located on the bottom rear side of the gearcase.
OIL CHECK
1. Remove the fill plug
q
. Check the
oil level.
2. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
3. Reinstall the fill plug. Torque to
specification.
4. Reinstall the footwell.
OIL CHANGE
TORQUE
Drain Plug: 20–25 ft lbs. (27–34 Nm)
1. Place a drain pan under the
gearcase. Remove the drain plug
w
.
Allow the oil to drain completely.
2. Clean and reinstall the drain plug.
Torque to specification.
3. Remove the fill plug. Add the proper
amount of the recommended oil.
4. Reinstall the fill plug. Torque to
specification.
5. Check for leaks.
6. Reinstall the footwell.
7. Dispose of used oil properly.
117
MAINTENANCE
