110
MAINTENANCE
Steering System
Ski Alignment
WARNING! Improper ski alignment or adjustment may cause loss of steering
control, resulting in serious injury or death. Do not attempt to change the ski
alignment or camber adjustment. See your POLARIS dealer.

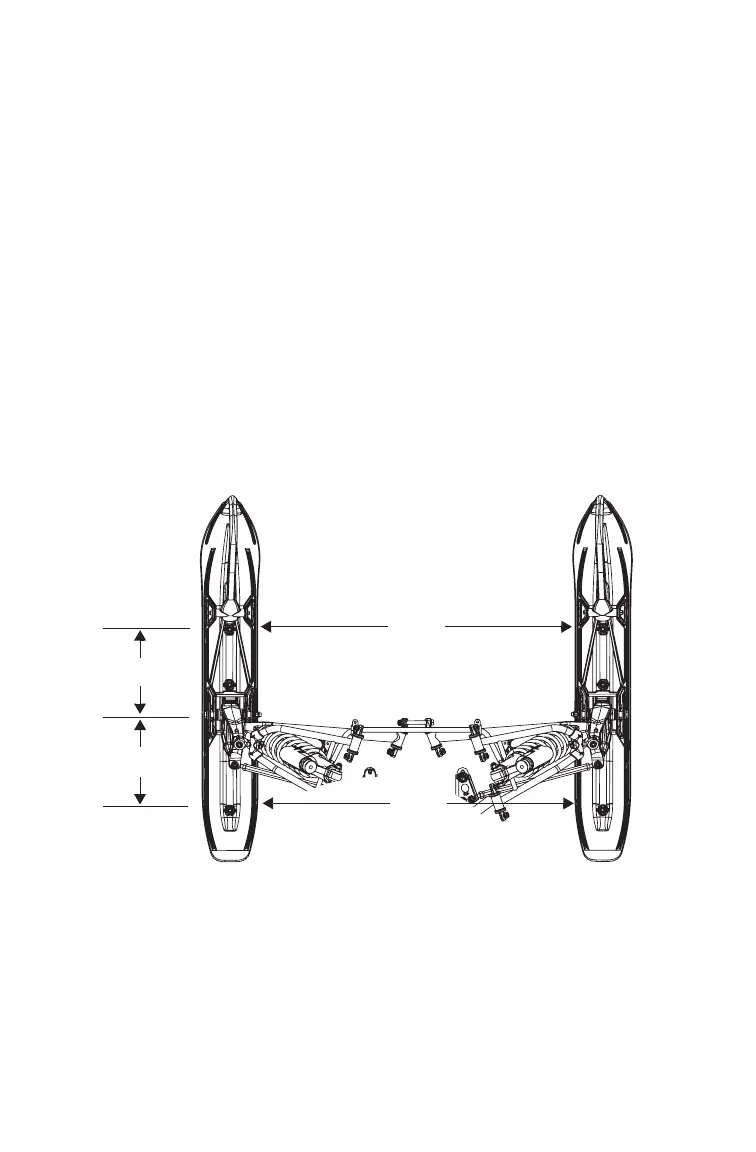

1. Place the handlebars in a straight-ahead position.
2. With only vehicle weight compressing the suspension, measure
10 inches (25.4 cm) forward from the center of the ski mounting
bolt. See illustration. At this point, measure between the skis. This is
measurement X.
3. Perform the same measurement rearward from the center of the ski
mounting bolt. This is measurement Y.
4. The X measurement should be 1/8-1/4 inch (3-6 mm) greater than
the Y measurement. If the skis are misaligned, see your dealer for
alignment correction as camber adjustment may also be affected.
X
Y
10 in.
(25.4 cm)
10 in.
(25.4 cm)
