FEATURES AND CO NTRO LS
Brake Lever

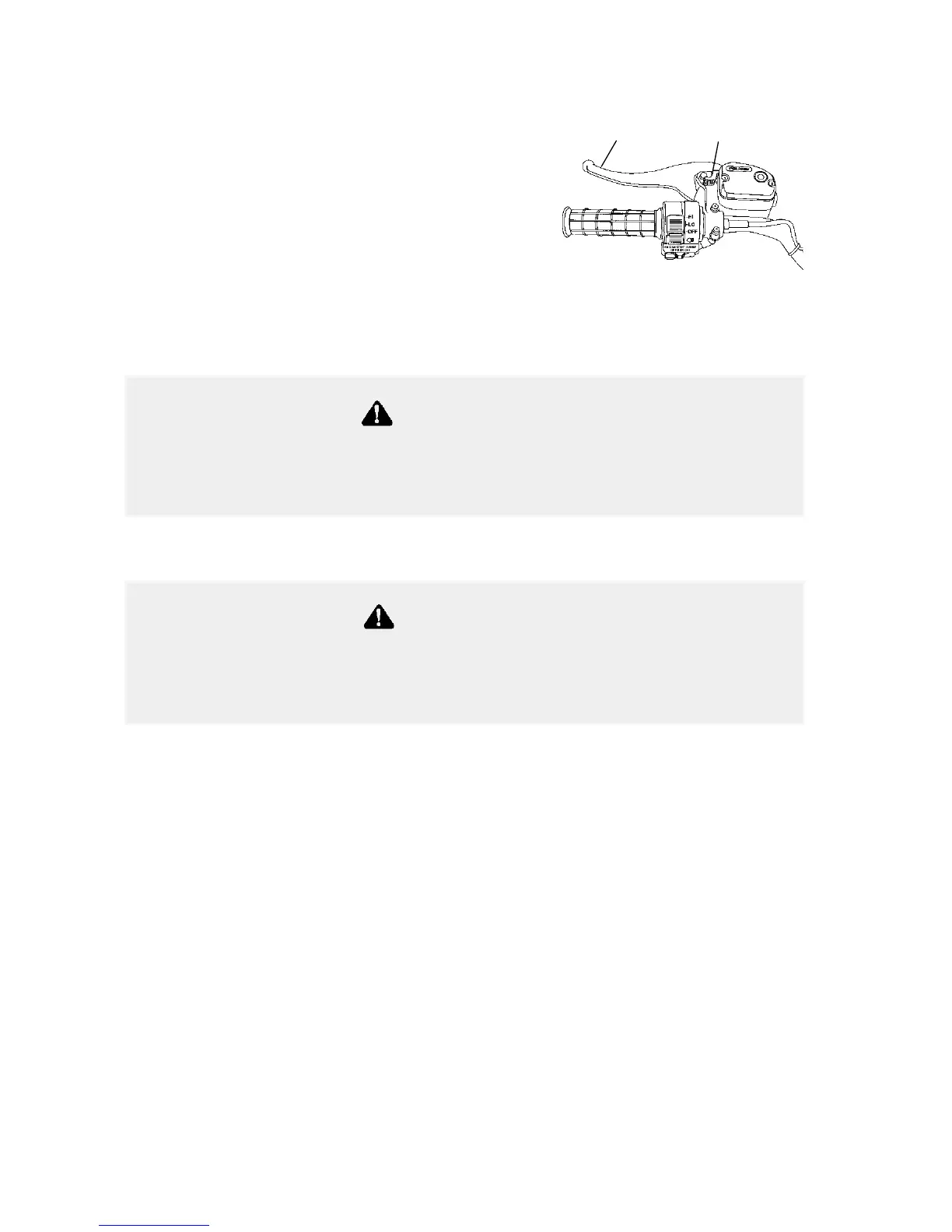

The front and rear brakes are applied by
squeezing the brake lever (1) toward the
handlebar. The front and rear brakes are
hydraulically activated disc type brakes
that are activated by only one lever.
Always test brake lever travel and master
cylinder fluid le vel before riding. When squeezed, the lever should
feel firm. Any sponginess would indicate a possible fluid leak or low
master cylinder fluid level, which must be correct ed before riding.
Contact your dealer for proper diagnosis and repairs.
Parking Brake
Setting the Parking Brake
1. Squeeze and release the brake lever two or three times, then
squeeze and hold.
2. Push the park brake lock (2) forward to engage the brake. Release
the brake lever.
3. To release the parking brake lock, squeeze and release the brake
lever. It will return to its unlocked position.
Important Safeguards
S The parking brake may relax if left on for a long peri od of time. Al-
ways block the wheels to prevent rolling.
S Always block the wheels on the downhill side of the ATV if leaving
it parked on a hill. Another option i s to park the ATV i n a sidehill
position.
S Never depend on the parking brake alone if the ATV is parked on a
hill. Always block the wheels to prevent rolling.
1
2
Operating the ATV with a spongy brake lever can result in loss
of braking, which could cause an accident. Never operate the
ATV with a spongy-feeling brake lever.
WARNING
Operating the ATV while the parking brake is engaged could
result in an accident and serious injury or death. Always check
to be sure the parking brake is disengaged before operating.
WARNING
