Polaroid 37" - Setting Up Your LCD TV

I 7
EN
5
5.1-TV Control Panel
or
ProgramDown/Upbutton
or
VolumeLevelDown/Upbutton
or
On-Off/Standbybutton
or
or
Stand by indicator
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected.
or
Menubutton/Sourceselectionbutton

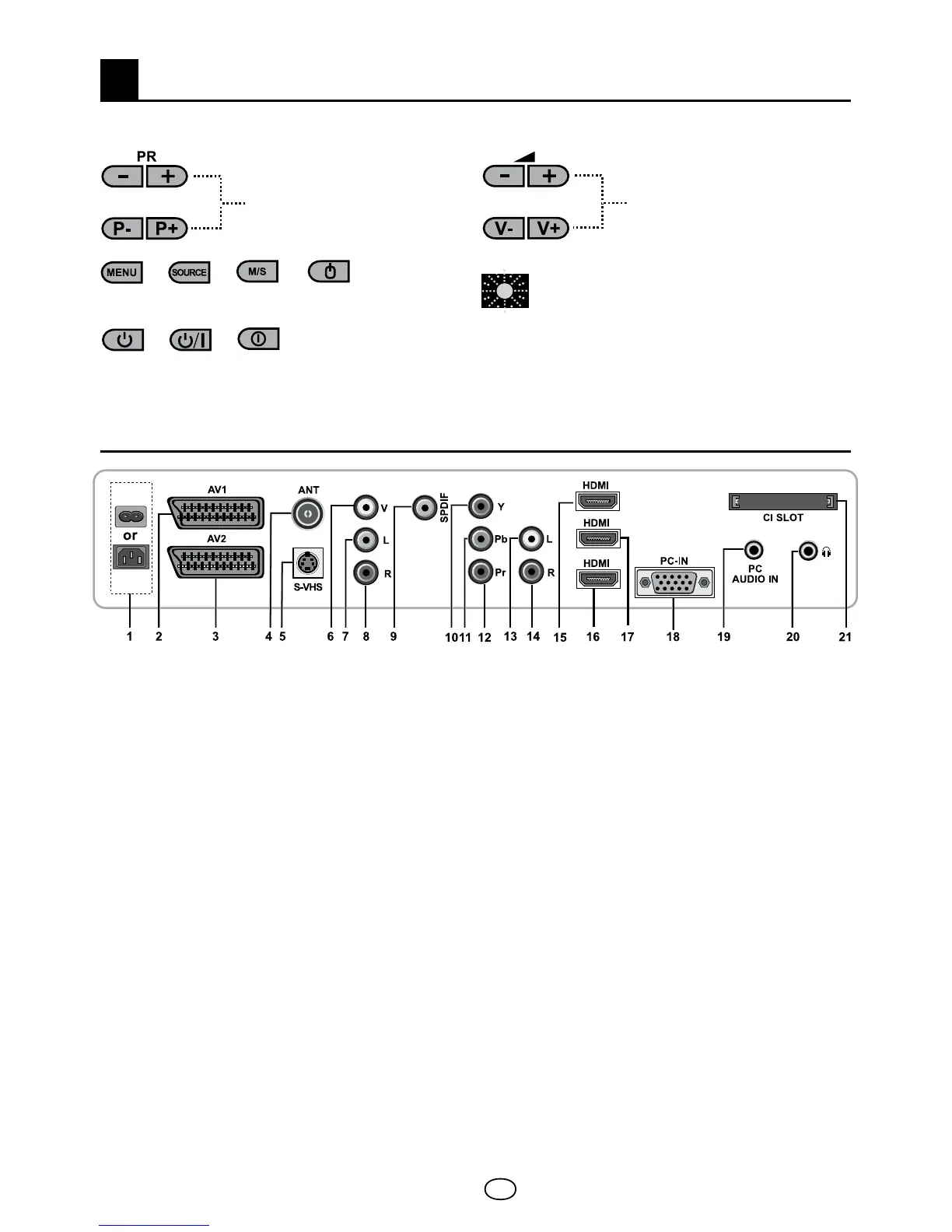

5.2-Rear and Side External Connections
1-Power input
2-AV1 scart
3-AV2 scart
4-Antenna input
5-S-VHS input
6- Video input CINCH connector
7-SoundinputCINCHconnector(Left/L)
8-SoundinputCINCHconnector(Right/R)
9-SPDIF Digital audio output
10-Component video input (Y)
11-Component video input (Pb)
12-Component video input (Pr)
13-Component audio input (L)
14-Component audio input (R)
15-HDMI 1 input
16-HDMI 2 input
17-VGA (PC connection input)
18-PC audio input
19-Stereo Headphone socket
20-CI slot input
Note: Above drawing for external connections is representational. Their order and places on
your TV may be different.
Please see Technical Specifications Table on page 30 for the available external connections
on your television.
•PleasedonotusethevideoRCAandS-Videoconnectionsimultaneously,otherwisethese
two devices might influence the picture quality of one another.
