INSTALLATION
18
B
A
Use an Audio cable to connect the VCR’s/ the VIDEO CAMERA’s audio
output jacks to your LCD TV.
Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA.
Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’S. composite output jacks
to your LCD TV.
Connect all power sources before turning on the power switch
of the LCD TV or other connected equipments.
Press the POWER button to turn on your LCD TV.

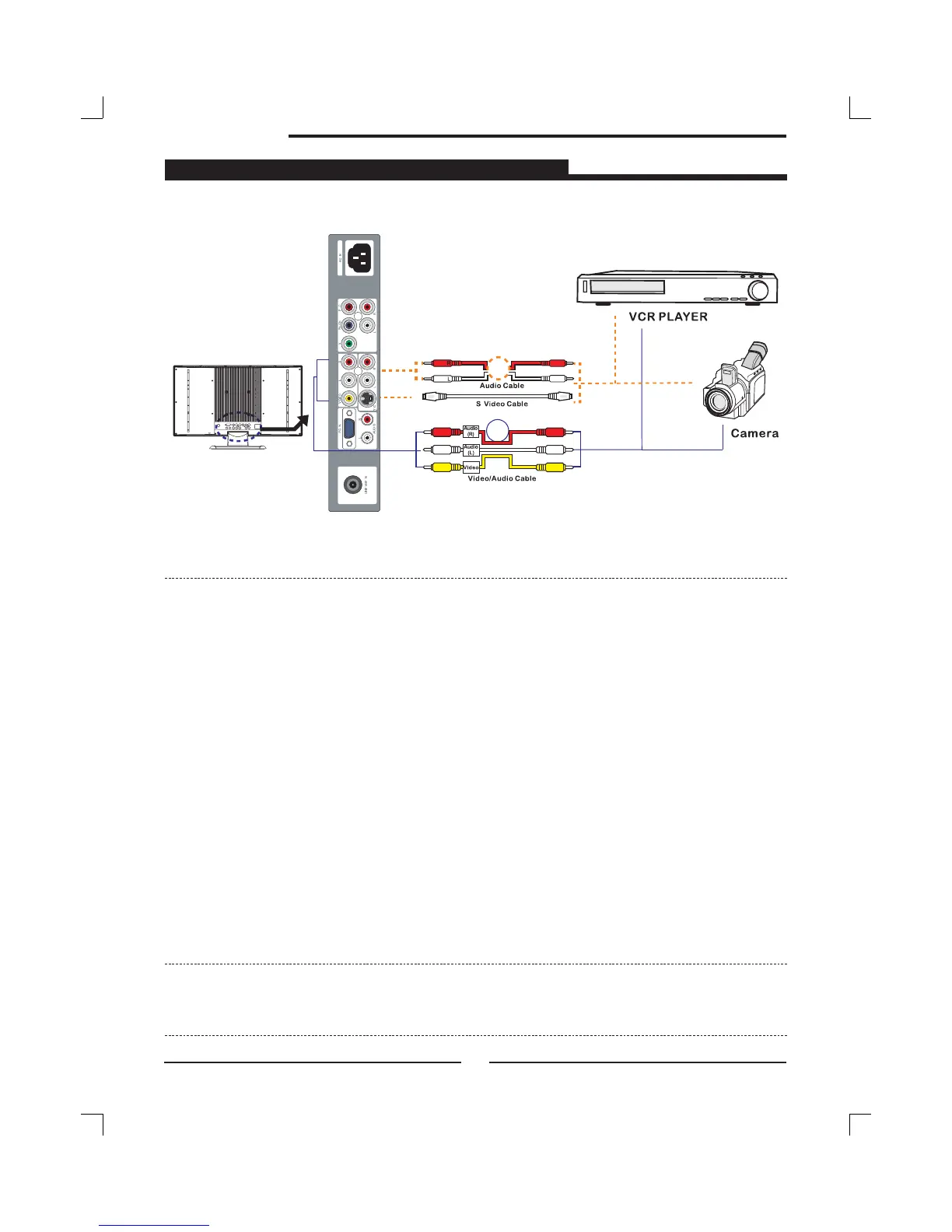

Connecting a VCR & a Video Camera
1
METHOD A (AV2) (BEST)
METHOD B (AV1) (GOOD)
2
3
To watch VCR or VIDEO CAMERA, press the INPUT button to select AV1 or AV2.
Note: Not all cameras have the ability to connect to a TV. Please check your video
camera user guide for compatibility.
4
